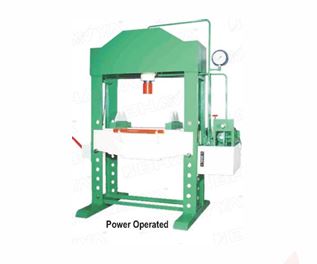

20T hydraulic press
Order Code: 25268467.18
Category: General Lab Equipment V
TECHNICAL SPECIFICAATIONS: 1. Capacity : 25-Ton 2. Distance Between Column (FB X LR) : 280mm X 800mm 3. Distance Between Ram to Bed (min. X max.) : 175mm X 800mm 4. Ram Stroke : 175mm 5. Type Of Press Frame : ‘H...
SPECIFICATION
TECHNICAL SPECIFICAATIONS:
1. Capacity : 25-Ton
2. Distance Between Column (FB X LR) : 280mm X 800mm
3. Distance Between Ram to Bed (min. X max.) : 175mm X 800mm
4. Ram Stroke : 175mm
5. Type Of Press Frame : ‘H’ frame type fabricated frame
6. No. Of Cylinder : 1 Nos.
7. Motor Capacity : 3 H.P., 3 Phase, 1440 rpm
8. Cylinder type : Double Acting
9.Speed (Approx.) : 3mm / Sec.
STRUCTURE:
The Presses have good rigid structure for accurate works.
POWER PACK UNIT:
The above Presses will be powered by specially designed Power Pack Unit having Oil Breather (Hydro line), Oil Level Indicator (Hydro line), Suction Strainer (Hydro line),Gear pump (Bosch Rexroth), Flexible Coupling (Jeck Tech), Electric Motor (Crompton / Siemens), Hand Lever operated Direction Control Valve (Bosch Rexroth),Pressure Gauge (Air Master), Return Line Filter (Hydro line), Oil Tank (without oil), Internal & External Pipe Line etc.
HYDRAULIC CYLINDER:
The above Presses will be powered by specially designed Double Acting Hydraulic Cylinders. Cylinders manufactured out of quality steel. Cylinder bores will be honed to mirror finish or long life of piston seals. All chevron seals & bronze strip used for leak proof performance. Ram will be made from EN-8 material & surface ground hardened for long life of seals & corrosion resistance.
