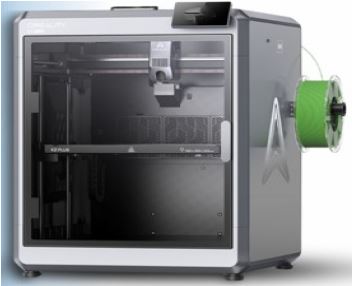

3D Printer

Order Code: 25269636.3

Category: General Lab Equipment V

3D Printer



SPECIFICATION

3D Printer

  1. Printer design: Core XY
  2. Build volume: 360x360x360 mm (14.17''x14.17''x14.17'')
  3. Printer dimensions: 800x800x900* mm (31.49'' x31.49''x 35.43'')* including side spoolholders and top enclosure cover (separate future add-on)
  4. Filament diameter: 1.75mm, wide range of thermoplastics supported (including, but not limited to PLA, PETG, ASA, ABS...)
  5. Extruder: Planetary 1:10 gearbox with no-slip drive gear, Load Cell sensor
  6. Tool Changer with up to 5 tool heads (optional upgrade via built-in expansion port)
  7. Bed: Segmented heatbed with 16 individually controlled segments
  8. Print surface: Removable magnetic steel sheets with different surface finishes
  9. Electronics: 32-bit custom-made board with an expansion slot, single-cable communication with tool heads, network features, one-click printing
  10. Mesh bed levelling: Load Cell-based fully automatic first layer calibration with no Live Z adjustment
  11. Power panic: Hardware-based, single G-Code line accuracy
  12. Ethernet connection: built-in; network connectivity not required for setup or operation
  13. Wi-Fi module: built-in; network connectivity not required for setup or operation
