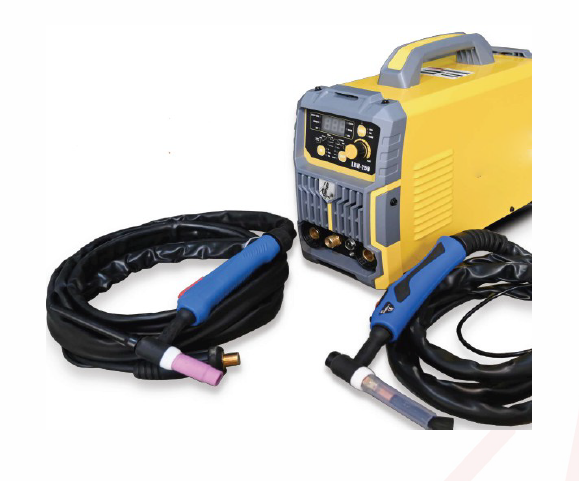

3-in-1 Multifunctional Machine
Order Code: 25268466.2.1
Category: General Lab Equipment V
Input voltage (V) 1*220V-240V+1*110-120V Frequency (Hz) 50/60 Power capacity (KVA) 7.1 Maximum input current (A) 38 No load voltage (V) 62V Rated working cycle (%) 60 MMA thrust current range (%) 0-100 MMA Hot Start Range (%) 0-1...
SPECIFICATION
Input voltage (V) 1*220V-240V+1*110-120V
Frequency (Hz) 50/60
Power capacity (KVA) 7.1
Maximum input current (A) 38
No load voltage (V) 62V
Rated working cycle (%) 60
MMA thrust current range (%) 0-100
MMA Hot Start Range (%) 0-100
TIG/DC/PULSE
Front gas time S 0.1-15
Arc initiation% 10-100
Rise time S 0-15
Welding current A 5-250
Descent time S 0-15
End arc % 10-100
Aftergas time 0.1-15
Base value% 10-100
Pulse frequency HZ 0.2-200
Duty cycle 10-90
TIG-COLD
Front gas time 0.1-15
Welding current A 5-250
Welding time MS 1-999
Interval time S 0-10
Aftergas time 0-15
MMA
Electrode diameter (mm) 1.6, 2.0, 2.5, 3.2, 4.0
Offset current (A) ±5A
CLEAN Cleaning current A 10 - 50
TIG tungsten diameter (mm) 1.0, 1.6, 2.0, 2.4, 3.2, 4
Efficiency (%) 85
Power factor 0.93
Protection level (S) IP23
Insulation level H
Size (mm) 380*160*240
Weight (kg) 16.5
