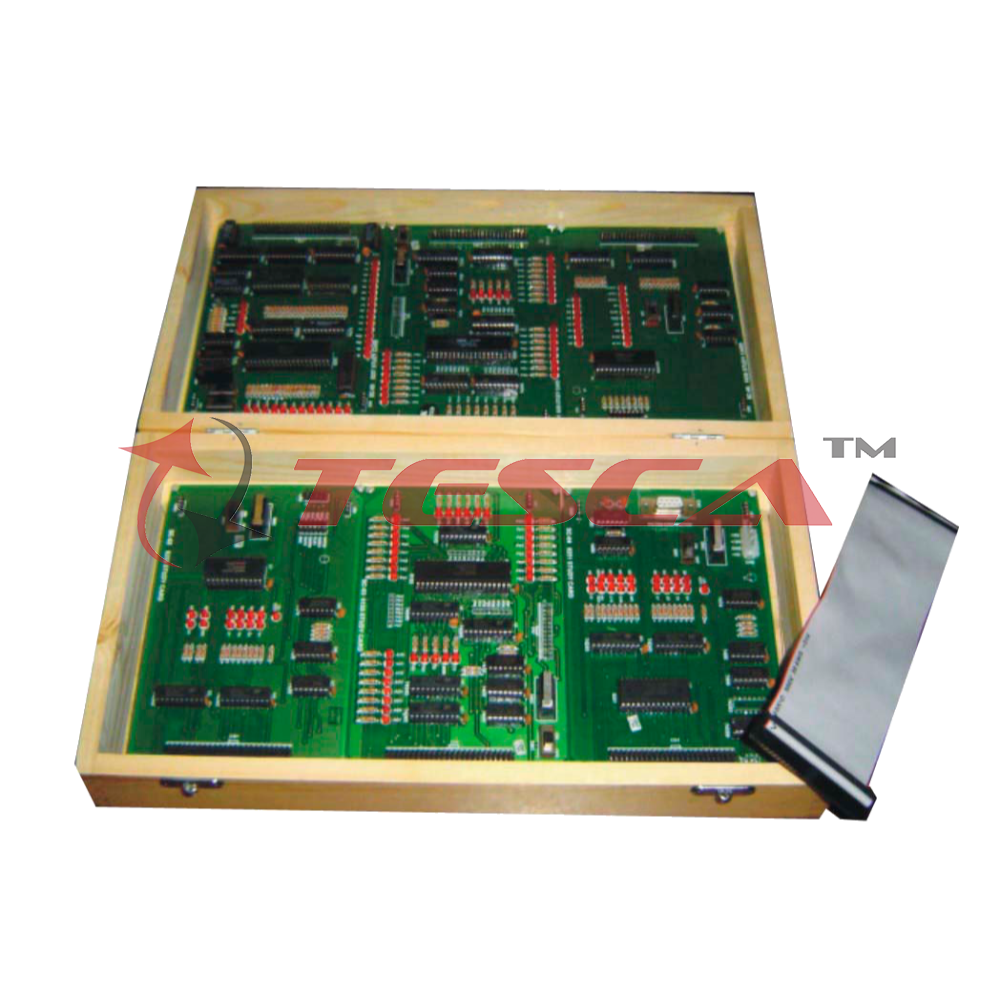

373 Latch Study Card + FRC
Order Code: 43283
Category: Embedded Trainers
Study Cards can be connected to the 50 Pins KXT Bus of any 8/16 bit Series Microprocessor Trainer Kits. In this Study Card LED's are provided for different signals like Read, Write, Address Lines, Data Lines, Chip Select &...
SPECIFICATION
LATCH / BUFFER STUDY CARD
- 8 bit Latch output using 74373 IC.
- 8 bit Buffer input using 74245 IC.
- 8 buffered latch output are indicated by 3mm LEDs.
- Eight Way DIP Switch is provided for buffer input.
- Eight bit buffered output are indicated by 3mm LEDs.
- Chip Select for IC-74245 and IC-74373 are indicated by 3mm LEDs.
- Hardware Single Step and Full Clock Execution modes are provided.
- Single stepping can be performed using micro switch provided on board.
- Using this study card all MODE experiment can be performed.
- Interface 8085/8086 Kit using 50 pin FRC Connector.
- User's Manual with Sample Programs
