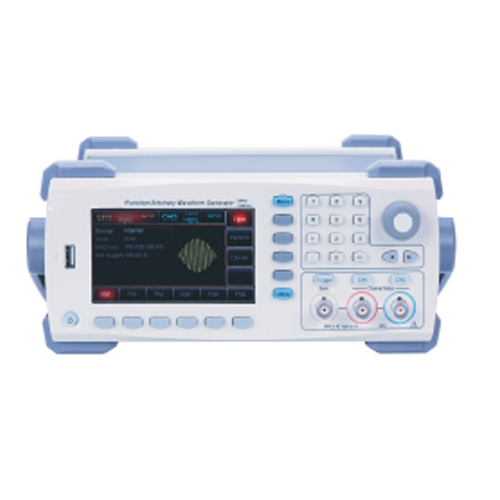

5MHz Arbitrary Function Generator ( DDS Technology With FPGA Design )
Order Code: 18193808.2
Category: General Lab Equipment IV
5MHz Arbitrary Function Generator ( DDS Technology with FPGA design ) Frequency - 1μHz to 5MHz Amplitude - from 2mV p-p to 10 volt p-p 50Ω From 4mVp-p to 20Vp-p in O.C. DC Offset - -5V. to +5V. Duty Cycle control - 20% to 80% ( ...
SPECIFICATION
- 5MHz Arbitrary Function Generator ( DDS Technology with FPGA design )
- Frequency - 1μHz to 5MHz
- Amplitude - from 2mV p-p to 10 volt p-p 50Ω
- From 4mVp-p to 20Vp-p in O.C.
- DC Offset - -5V. to +5V.
- Duty Cycle control - 20% to 80% ( below 1MHz in Square wave )
- Display - 7 digit LED display for voltage and frequency
- Wave form - Sine, Square, Ramp, Pulse, Gaussian Noise. 46 built-in
- arbitrary waveforms(include DC)
- Modulation - AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst
- Frequency setting - through numeric keypad,
- Vertical resolution - 14 bit
- Power - 230V.AC, ?15%, 50Hz
- Accessory - power cord, BNC to Crocodile Clip x 1
