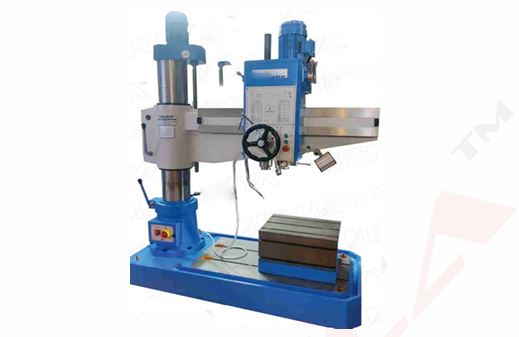

Radial drilling machine
Order Code: 25268467.5
Category: General Lab Equipment V
Maximum hole diameter - 40mm (M.S.) Distance between the spindle center to column minimum & Maximum - 300-1165mm Horizontal Travel of spindle - 865mm Spindle face to Base - 260mm (min.) 1130mm (max.) ...
SPECIFICATION
- Maximum hole diameter - 40mm (M.S.)
- Distance between the spindle center to column minimum & Maximum - 300-1165mm
- Horizontal Travel of spindle - 865mm
- Spindle face to Base - 260mm (min.) 1130mm (max.)
- spindle travel(mm) - 280
- Column Diameter(mm) - 230
- Spindle cone hole - MT-4
- Spindle speed 12(r/min) - 22-1400
- Feed level 3 - 0. 10-0. 2 5
- Arm vertical speed(m/min) - 1.3
- Arm rotation angle (0) - ± 180
- Main motor power(kw) - 3
- Lifting motor power (kw) - 1.1
- Machine Dimensions (mm) (Length X width X height) - 1880 x 795 x 2300
- Net weight (approx..) (kg) - 1565
STANDARD ACCESSORIES:
- All Electrical Motors
- Box Table (550 x 430 x 330 mm)
- Tool Box
- Machine Lamp
- Taper Sleeve Set
- Coolant pump with Fitting
- Foundation bolts
- Drill Chuck with shank
EXTRA ACCESSORIES: (DOESN'T COME WITH MACHINES)
6” Heavy Duty Drill Vice
8” Heavy Duty Drill Vice
M12 to M25 Tapping Attachment with Collets
