Arbitrary Waveform Generator

Order Code: 25268550.9C

Category: General Lab Equipment V

Arbitrary Waveform Generator



SPECIFICATION

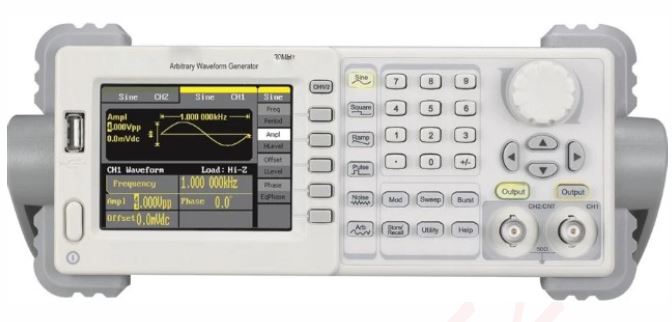

Arbitrary Waveform Generator

  1. No. of Channels : Single
  2. Frequency Output : 10 MHz
  3. Sample Rate : 125 MSa/s
  4. Vertical Resolution : 14 bits
  5. Standard Waveform : Sine, Square, Pulse, Ramp and Noise
  6. Arbitrary Waveform : Exponential rise, Exponential fall, Sin(x)/x, Staircase, etc. 45 built-in waveforms, User-Definable Waveforms
  7. Sine : 1 μHz to 10 MHz
  8. Square : 1 μHz to 5 MHz
  9. Ramp : 1 μHz to 1 MHz
  10. Pulse : 1 μHz to 5 MHz
  11. White Noise : 5 MHz bandwidth (-3 dB) (Typical)
  12. Arbitrary : 1 μHz to 5 MHz
  13. Output Impedance : 50 Ω (Typical)
  14. Output Amplitude : 1 mVpp to 25 Vpp (High Impedance) 1 mVpp to 12.5 Vpp (50 Ω)
  15. Amplitude Resolution : 1 mVpp or 4 digits
  16. Amplitude Accuracy : ± (1% of setting + 1mVpp) (Typical value 1 kHz Sine, 0 V offset)
  17. DC offset Range (AC+ DC) : ± 12.5 V (High Z) ± 6.25 V (50 Ω)
  18. DC Offset Resolution : 1 mV or 4 digits
  19. DC Offset Accuracy : ± (1% of |setting| +1 mV + 0.5% of amplitude Vpp)
  20. Display Type : 4 inch colored LCD
  21. Display Resolution : 480 (Horizontal) x 320 (Vertical) Pixels
  22. Input Supply : 220 -240 VAC, 100-120 VAC, 50/60 Hz, CAT II
  23. Consumption : <18 W
  24. Temperature : Operating Temperature : 0?C to 40?C Storage Temperature : -20?C to 60?C
  25. Relative Humidity : 90%
  26. Colling Method : Natural cooling
  27. Dimension : (W X H X D) 235 x 110 x 295 mm
  28. Weight : 3 kg
  29. Accessories : Mains Cord, Output Cable, USB Cable, CD
