SPECIFICATION

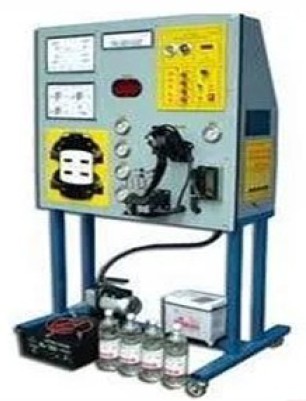

ABS teaching board
Product Overview
The ABS Teaching Board is a hands-on training platform designed to demonstrate the operation, control, and diagnostic functions of automotive Anti-Lock Braking Systems. The system uses a real automotive ABS ECU, working wheel speed sensors, and hydraulic
actuators to provide realistic training in a safe, controlled educational environment.
Key Features
- Realistic ABS system operation demonstration
- Individual wheel speed monitoring
- Hydraulic pressure modulation training
- Manual fault insertion for diagnostic practice
- Suitable for classroom and laboratory instruction.
Power Supply
- 12V DC system
- Powered by 220V or 110V AC adapter
ABS ECU
- Real automotive ECU or programmable simulation module
Sensors
- 4 working wheel speed sensors (active or passive)
Actuators
- Hydraulic modulator with solenoid valves
- Electric ABS pump motor
Control Panel
- Ignition switch
- Brake pedal simulation lever with pressure sensor
- Fault insertion switches
Gauges
- Digital or analog displays.
