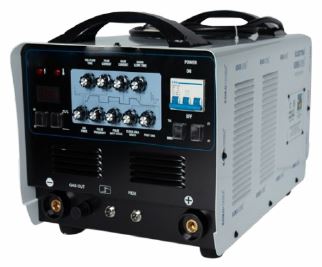

ACDC Pulse TIG Welding Machine

Product Overview
This ACDC Pulse TIG Welding Machine is a versatile, high-performance welding solution designed for precision, durability, and efficiency. Delivering up to 300 A output on a single-phase 220 V power supply, it is ideally suited for welding aluminium, stainless steel, and mild steel.
The integration of advanced Pulse technology and AC/DC TIG functionality ensures minimal heat distortion, precise arc control, and superior weld quality, making the machine suitable for industrial, fabrication, and professional welding applications.

Technical Specifications

• Input Voltage : 220 V ±10%, Single Phase, 50/60 Hz
• Output Current Range : 10 A – 300 A
• Duty Cycle : 60% at 300 A
• Pulse Frequency : 0.2 – 500 Hz
• AC Frequency : 50 – 250 Hz
• Power Efficiency : ≥ 85%
• Cooling System : Fan-cooled
• Weight : Approx. 26 kg
• Dimensions (L × W × H) : 510 mm × 230 mm × 400 mm
• Welding Modes : TIG (AC/DC), MMA
• Protection Class : IP23
• Arc Start : High-Frequency (HF)

Key Features
Advanced AC/DC Functionality

• Enables seamless switching between AC and DC modes for welding aluminium, stainless steel, and mild steel with high precision.

Pulse Welding Technology

• Adjustable pulse frequency and width provide improved heat control, deeper penetration, and reduced distortion.

High-Frequency Arc Start

• Ensures smooth, reliable, and contamination-free arc initiation.

Digital User Interface

• User-friendly digital controls with clear display for accurate parameter setting.

Compact & Lightweight Design

• Portable construction suitable for workshop as well as on-site welding operations.

Dual Welding Modes

• Supports both TIG and MMA welding for versatile application coverage.

Efficient Cooling System

• Fan-cooled design ensures stable operation and extended service life.

Energy-Efficient Operation

• Optimized power consumption for cost-effective performance without compromising output.

Applications

• Aerospace: Welding aluminium and lightweight structural components
• Automotive: Fabrication of exhaust systems, frames, and precision parts
• Fabrication Workshops: Stainless steel and mild steel fabrication
• Shipbuilding: Precision welding for marine structures
• Maintenance & Repair: Suitable for detailed and complex repair tasks

Package Inclusions

1. ACDC Pulse TIG Welding Machine
2. TIG Torch with 4-meter cable
3. Ground Clamp with 3-meter cable
4. Gas Hose
5. Electrode Holder for MMA Welding
6. User Manual
7. Warranty Card
