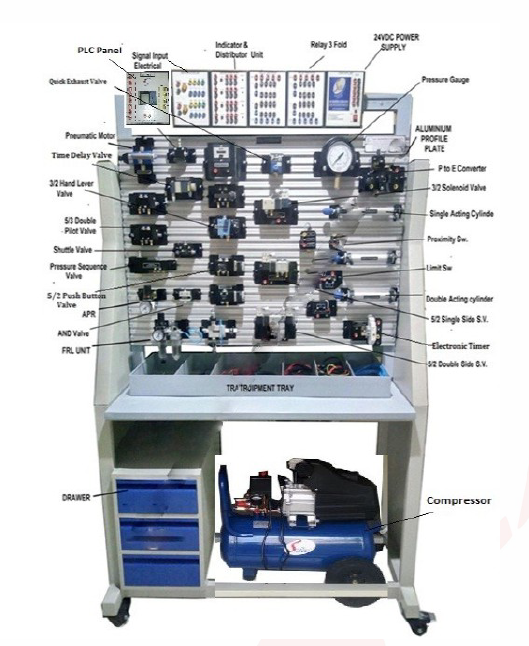

PNEUMATIC COMPONENTS
1) Manifold (PM-08)    (Qty:1)
-Operating pressure: 0 - 10bar -Output port x8 with built-in type check valve
-Input connector of 3/2 way hand slide valve
-Available for air supply open/close 2) Start-up valve with control valve (P2L-2) (Qty:1)
-Pressure regulation range:0.5 - 8.5bar
-Grade of filtration: 40 μm
-Rating flow: 500l/min -Connecting PT1/4, pressure gauge PT1/8 -Differential pressure draining
Pressure regulator valve with gauge (PJY-2) (Qty:1)
-Pressure regulation range:0.5 - 8.5bar -Body material: aluminium alloy -Rating flow: 550l/min
Pressure gauge (PB-B10) (Qty:1) -Design: Bourdon tube pressure gauge
-Display range: 0 - 10 bar -Display glass’s diameter: ø40 5) One-way flow control valve (PDJL-1) (Qty:4)
-Operating pressure: 0.5 - 9.5bar -Free flow (Out to In) rate : 400l/min
-Controlled flow (In to Out) rate : 200l/min 6) Single-acting cylinder (PG1-2575) (Qty:1)
-Operating pressure: 1.5 - 10bar -Stroke length: max.75mm
-Operating speed: 50 - 800mm/s -Cylinder’s inner diameter: ø25 -Built-in crash cushion
Double-acting cylinder (PG2-25125) (Qty:2)
-Operating pressure: 1.5 - 10bar -Stroke length: max.125m -Operating speed: 30 - 800mm/s
-Cylinder’s inner diameter: ø25-Built-in crash cushion
3/2-way roller lever valve, normally closed (PJ-2G23NC) (Qty:2)
-O" 9) 3/2-way valve with pushbutton actuator, normally closed (PJ-A23NC) (Qty:1)
-Operating pressure: 0 - 8bar -Direct operational valve -Normally closed type
-Push button operation
5/2-way valve with selector switch (PJ-X25) (Qty:1)
-Operating pressure: 0 - 8bar -Direct operational valve -Return type: spring
-Two-position selector switch
5/2-way valve, pneumatically actuated at one end (PQ-251) (Qty:1)
-Operating pressure: 1.5 - 8bar -External air control -Return type: spring and pilot -Spool valve
-Motion frequency: 5 per second
5/2-way double pilot valve, pneumatically actuated at both ends (PQ-252) (Qty:2)
-Operating pressure: 1.5 - 8bar -External air control -Return type: pilot, self-holding
-Spool valve -Motion frequency: 5 per second
5/2 hand directional valve (PQ-25SD) (Qty:1)
-Operating pressure: 0 - 10bar -Manual control -Return type: manual-Spool valve-Swing angle: ±15°
Shuttle valve (OR) (PSF-1) (Qty:2)
-Operating pressure: 0.5 - 9.5bar -Proof pressure: 15bar-Circulation volume: 0.56
-Net sectional area: 10mm2
Dual-pressure valve (AND) (PSYF-1) (Qty:1)
-Operating pressure: 0 - 10bar -Proof pressure: 15bar -Circulation volume: 0.56
-Net sectional area: 10mm2
Check valve (PZH-1) (Qty:2)-Operating pressure: 0 - 9.8bar
-Cracking Pressure: 0.2bar -Connecting size 1/8"perating pressure: 0 - 8bar
-Return type: spring -Normally closed type -Bi-directional roller lever direct operational valve" "17) Non-return valve, delockable (PYD-1) (Qty:2)
-Operating pressure: 0.5 - 9.5bar
-Operating frequency: 60 per minutes
-Active section: 24mm2
Quick-exhaust valve (PKP-1) (Qty:1)
-Operating pressure: 0 - 9bar
-Proof pressure: 15bar
-Circulation volume: 0.56
-Net sectional area: 10mm2
Pneumatic timer, normally closed (PYS-23N) (Qty:1)
-Operating pressure: 2 - 10bar
-Time delay: 1 - 30s
-Delay error: 8%
-Type: 3/2 way, inner air reset
-Transfer time: 30ms
Pressure sequence valve (PSX-L6) (Qty:1)
-Operating pressure: 1 - 8bar
-Net sectional area: controlled flow (10mm
), free flow (10mm2)
-One way valve opening pressure: 0.3bar
-Leakage rate 50l/min, response time: 0.3s
-Pressure setting screw (available)"
