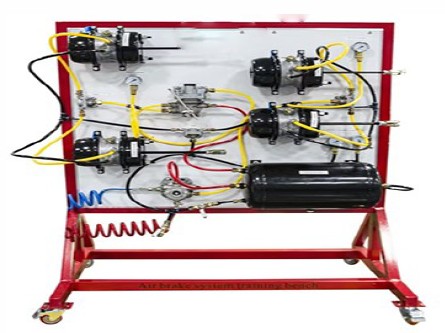

Air brake system teaching bored

Product Overview
The Air Brake System Teaching Board is a comprehensive training platform designed to demonstrate the working principles, operation, and safety features of pneumatic braking systems used in heavy commercial vehicles.
The system integrates a complete air brake circuit, allowing learners to study pressure generation, storage, control, and brake application in a controlled and safe training environment.

Key Features

• Complete air brake circuit demonstration
• Real pneumatic valves and components
• Dual-circuit system for realistic training
• Safe operation with built-in protection features
• Suitable for classroom and workshop-based instruction

Technical Specifications
System Pressure

• 8–10 bar (0.8–1 MPa) operating pressure

Air Supply

• Built-in mini compressor (0.75–1.5 kW)
• Reservoir capacity: typically 2–5 liters each (primary & secondary circuits)

Valves Included

• Foot brake valve (dual-circuit treadle)
• Quick-release valve
• Relay valve
• Trailer control valve (if simulating tractor-trailer systems)
• Spring brake control valve
• Parking brake valve
• Protection valve
• Air dryer (optional)

Gauges

• Tank pressure gauges (primary, secondary)
• Application pressure gauge (foot valve output)

Frame Dimensions

• Approx. 1,200–1,600 mm (W) × 700–900 mm (D) × 1,500–1,800 mm (H)

Weight

• 100–200 kg depending on complexity

Power Supply

• 220V or 110V AC for onboard compressor

Safety

• Automatic pressure relief valve
• Emergency stop button
• Overcurrent protection

Complete Circuit

• Air compressor simulation
• Governor
• Reservoirs
• Brake system

Training Functions

• Air pressure generation and regulation
• Dual-circuit brake operation
• Service brake and parking brake functions
• Pressure monitoring and system response
• Fault diagnosis and safety behavior analysis

Educational Advantages

• Realistic pneumatic brake system layout
• Safe, controlled training without vehicle installation
• Clear visualization of air flow and pressure changes
• Ideal for step-by-step instruction and hands-on practice
