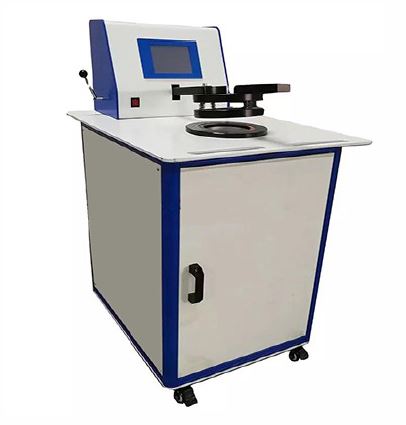

Air Permeability Tester With Accessories
Order Code: 25268654.2.28A
Category: General Lab Equipment V
Air Permeability The permeability of fabrics by evaluating the airflow through the material Specifications Operation Display: Touchscreen display with inbuilt PLC (microcomputer) Clamping: Pneumatic clamping with air compressor T...
SPECIFICATION
Air Permeability
- The permeability of fabrics by evaluating the airflow through the material
Specifications
- Operation Display: Touchscreen display with inbuilt PLC (microcomputer)
- Clamping: Pneumatic clamping with air compressor
- Test Time: 10 – 15 seconds
- Nozzle Pressure Difference: 4,000 Pa
- Specimen Pressure Difference: 1,000 Pa
- Permeability Range: 0.1 – 12,000 mm/s
- Measuring Error: ≤ ±2%
Measuring Units:
- mm/s
- m³/m²/min
- cm³/cm²/s
- m³/m²/h
- L/dm²/min
- L/m²/s
- cfm
Testing Area Options:
- 5 cm²
- 20 cm²
- 50 cm²
- 100 cm²
Fabric Thickness: ≤12 mm
Nozzle Parameters – Diameter Options:
- 0.8 mm, 1.2 mm, 2 mm, 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 16 mm
Dimensions (W × D × H): 330 × 495 × 430 mm
Sample Thickness: 1 mm (maximum)
Printer Output: Included
Power Supply / Frequency: 100 VAC, 50/60 Hz
