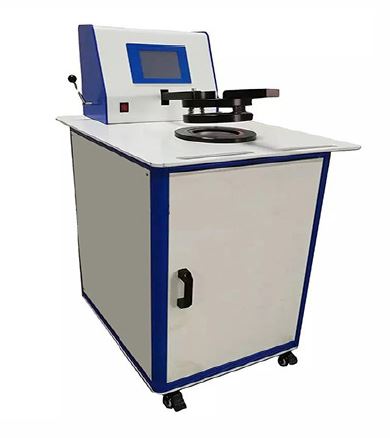

Air Permeability Tester With Accessories
Order Code: 25268654.2.28
Category: General Lab Equipment V
Purpose Measures the permeability of fabrics by evaluating the airflow through the material Specifications Operation Display: PLC + Touch Screen Test Method: Automatic Test Time: 10 - 15 seconds Nozzle Pressure Difference: 4,00...
SPECIFICATION
Purpose
- Measures the permeability of fabrics by evaluating the airflow through the material
Specifications
- Operation Display: PLC + Touch Screen
- Test Method: Automatic
- Test Time: 10 - 15 seconds
- Nozzle Pressure Difference: 4,000 Pa
- Specimen Pressure Difference: 1,000 Pa
- Data Port: RS232C
- Permeability Range: 0.1 - 12,000 mm/s
- Measuring Error: ≤ ± 2%
Measuring Units:
- mm/s
- m³/m²/min
- cm³/cm²/s
- m³/m²/h
- L/dm²/min
- L/m²/s
- cfm
Testing Area Options:
- 5 cm²
- 20 cm²
- 50 cm²
- 100 cm²
- ¢50 mm (≈19.6 cm²)
- ¢70 mm (≈38.3 cm²)
Fabric Thickness: ≤ 12 mm
Nozzle Parameters – Diameter Options:
- 0.8 mm, 1.2 mm, 2 mm, 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 16 mm
Dimensions (W x D x H): 330 x 495 x 430 mm
Weight: Approx: 25 kg
Interface: Data logger output terminal
Sample Size: 50 x 50 mm to 100 x 100 mm (standard)
Sample Thickness: 1 mm (maximum)
Power Supply / Frequency: 100 VAC, 50/60 Hz
Accessories
- Test plates and fixtures
- Calibration Plates
- Nozzle
- Power line
