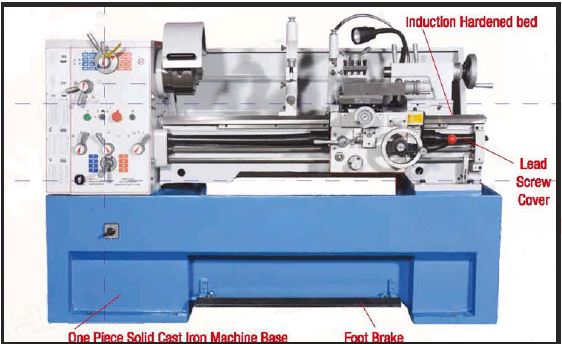

The universal lathe machine C/W 4 sets of tools shall exhibit the following technical features:

1. Centre Height 210mm
2. Swing over Bed 410mm
3. Distance Between Centres 1000mm
4. Swing over Carriage 250mm
5. Swing over Cross Slide 250mm
6. Swing in Gap 640mm
7. Gap Length in Front of Face Plate 200mm
8. Cross Slide Travel 280mm
9. Top Slide Travel 100mm
10. Bed Width 340mm
11. Spindle Nose D1-8
12. Spindle Bore 80mm
13. Taper Reduction in Sleeve MT7
14. Number of Spindle Speed Ranges 12
15. Range of Spindle Speeds 25-1800rpm
16. Quill Diameter 75mm
17. Quill Travel 130mm
18. Quill Internal Taper MT4
19. Longitudinal Feeds 0.041-2.476mm/rev
20. Cross Feeds 0.016-0.991mm/rev
21. Metric Threads 0.5-20mm,23steps
22. Imperial Threads 1.625-72t.p.i.,65steps
23. Module Threads 0.25-1024steps
24. Diametrical Threads 3.625-96DP,45 steps
25. Pitch of Leadscrew 6mm
26. Main Motor(7.5 Hp)- 5.63kW
27. Coolant Pump Motor 90W
28. Dimensions 2310 x 1100 x1275mm
29. Net Weight 2488kg

Accessories:

1. 2 axis DRO system, 3 jaw chuck, Fixed steady, Travelling steady, Live center, Steel center, Reducing sleeve, Quick change tool post with tool holders, Thread chasing dial,Four position micrometer bed stop, 3-16mm keyless chuck & arbor, 25mm 9pcs indexable lathe tool set, Automatic carriage stop, Coolant system, Chuck guard, Lead screw guard, Emergency foot switch, Halogen work lamp,Manual & parts List

Lathe Operation eLearning Software ( to be installed on Smart Classroom Server)
INTRODUCTION TO THE CONVENTIONAL/MANUAL LATHE

1. Lathe components
2. Operation of a manual lathe
3. Lathe parts identification

Lathe safety

1. Safety procedures that should be followed before starting a lathe and during operation of the lathe

Lathe setup

1. Function and operation of two types of lathe chucks
2. Work piece and Tool Holding, Turning Tools , Tool Holders, Insert, Tool Holder, And Boring Bar Identification And Selection, Tool Care
