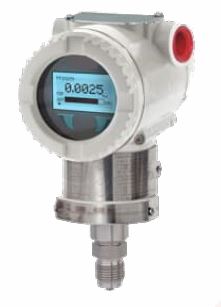

All-Rounder gauge pressure transmitter
SPECIFICATION
Technical Specifications :-
- Base accuracy: 0.055%
- Sensor span limits / Overpressure: 40 to 4000 kPa (0.4 to 40 bar, 5.8 to 580 psi) / 8 MPa (80 bar, 1160 psi)
- Maximum working pressure: Standard by design according to selected sensor range
- Diaphragm material: AISI 316L stainless steel (1.4435), NACE compliant
- Fill fluid: Silicone oil
- Process connection material: AISI 316L stainless steel (1.4404), NACE compliant
- Process connection size: 1/2" – 14 NPT female
- Housing material / Electrical connection: Aluminium alloy (barrel type) / 1/2" – 14 NPT
- Output / Communication protocol: HART / 4–20 mA (including Easy Setup)
- Display: Integrated digital LCD display with 2-button keypad
- Mounting: Bracket for horizontal or vertical pipe and wall mounting, carbon steel
- Software application: Calibration range and/or tag adjusted to customer specification
