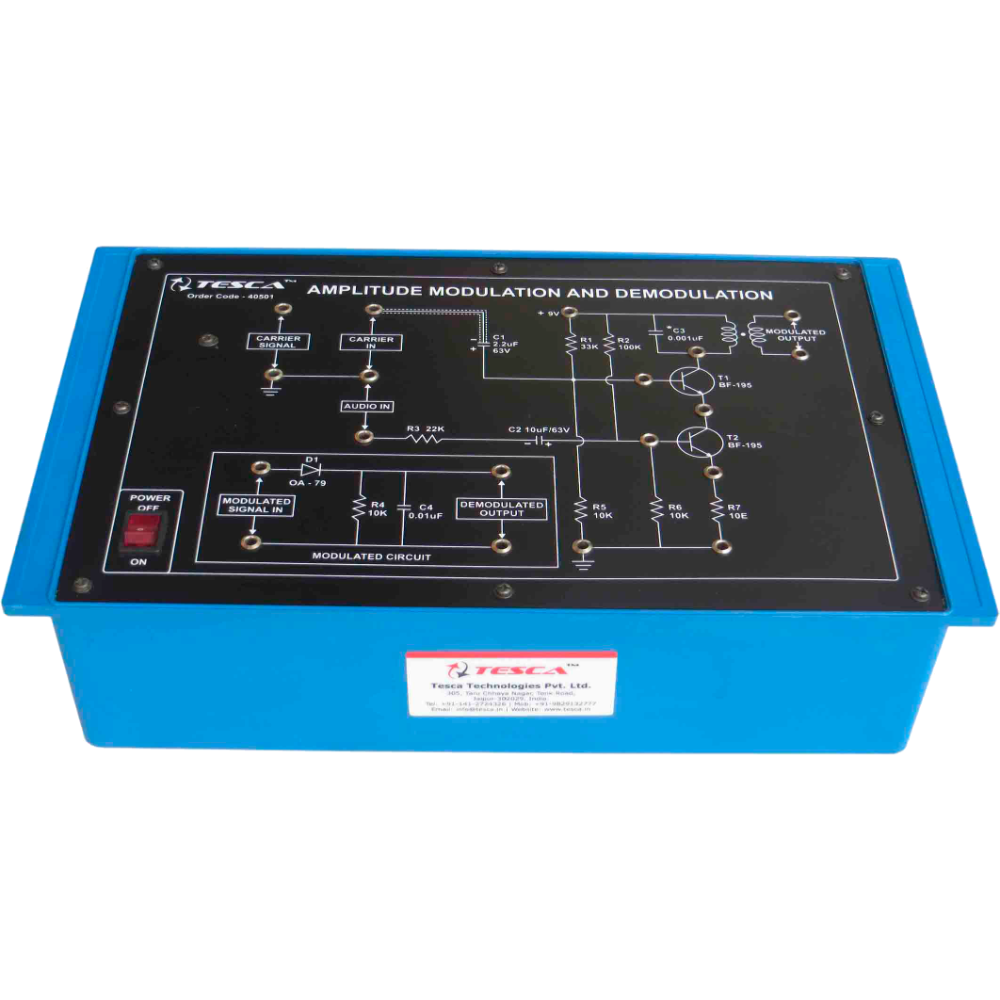

AM generator trainer
Order Code: 21224672.36
Category: General Lab Equipment III
Amplitude Modulation (AM) and Demodulation Trainer Object: To study the process of Amplitude Modulation and demodulation Experiments: 01. To observe the carrier waveforms on C.R.O 02. To modulate the carrier with the audio signal a...
SPECIFICATION
Amplitude Modulation (AM) and Demodulation Trainer
Object:
To study the process of Amplitude Modulation and demodulation
Experiments:
01. To observe the carrier waveforms on C.R.O
02. To modulate the carrier with the audio signal and to observe waveforms on C.R.O
03. To measure percentage modulation of the amplitude-modulated waveform
04. To demodulate amplitude modulated waveform and observe on C.R.O
Features:
The board consists of the following built-in parts :
01. +9V D.C. At 100mA, IC Regulated Power Supply internally connected
02. Carrier generator circuit which generates a carrier wave
03. Modulating circuit based on two transistors
04. Demodulating circuit
05. Adequate no. of other electronic components
06. Mains ON/OFF switch, fuse and Neon Jewel light
The unit is operative on 230V ±10% at 50Hz A.C. Mains Adequate no. of patch cords stackable from rear both ends 2mm spring loaded plug length ½ metre Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections & observation of waveforms Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
