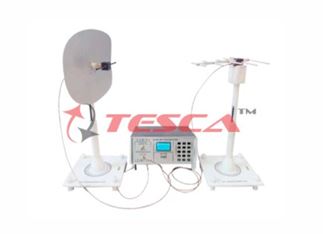

ANTENNA SYSTEMS DEMONSTRATOR

Order Code: 25268469R.30

Category: General Lab Equipment V

  Technical Specifications   simple dipole, folded dipole, Yagi-Uda and Ground Plane, dedicated instruments (RF generator, detector of EM radiations, Lecher Line) and accessories such as coaxial cables, connectors and adap...



SPECIFICATION


Technical Specifications


  • simple dipole, folded dipole, Yagi-Uda and Ground Plane, dedicated instruments (RF generator, detector of EM radiations, Lecher Line) and accessories such as coaxial cables, connectors and adapters.
  • Power supply is included: - 15 Vdc, 200 mA.
  • Performable exercises: testing and measurement of the irradiation features of transmitting antennas, testing and measurement of directivity, selectivity and gain features of receiving antennas, drawing of polar diagrams, antennas as fitted loads of transmission lines.
  • Connections and test points by 2mm terminals.
  • Metal panel
