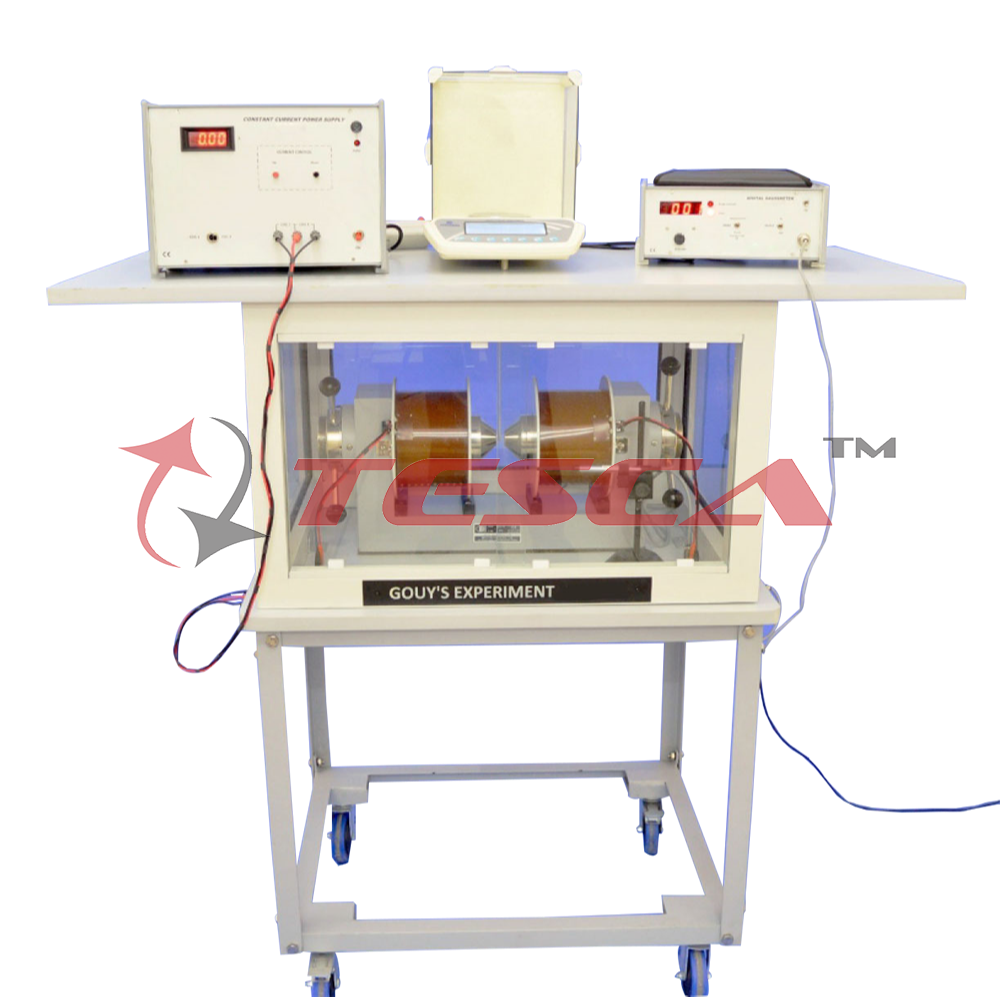

Apparatus for the Measurement of Susceptibility of Solids by Gouy’s Method

Order Code: 55539C

Category: Physics Trainers

Inthe Gouy’s method of susceptibility measurement, the solid sample in the form of a long cylinder (area of cross section A) is hung from the pan of a balance and is placed such that one end of the sample is between the pole-pieces of the ...



SPECIFICATION

Inthe Gouy’s method of susceptibility measurement, the solid sample in the form of a long cylinder (area of cross section A) is hung from the pan of a balance and is placed such that one end of the sample is between the pole-pieces of the magnet (field H ) and the other one is outside the field. The force exerted on the sample by the inhomogeneous magnetic field is obtained by measuring the apparent change ( Dm ) in the mass of the sample. The susceptibility c is given by
c= 2Dmg/AH2

If the sample is in the form of powder, it is filled in a long nonmagnetic tube which is then suspended from the pan of the balance.
  1. Digital Balance
    • Capacity  :  40gms
    • Readability  :  0.0001gms
    • Repeatability  :  ( /-) 0.1mg
    • Linearity  :  ( /-) 0.2mg
    • Pan Size  :  80mm
    • Standard bidirectional RS-232 interface Complete with weigh below hook feature suitable for 55539 measurement
  2. Sample in the form of a long rod: Aluminium sample and Glass Tube
  3. Electromagnet
    • Pole Pieces  :  75mm tappered to 25mm
    • Mag. Field  :  20KG mm airgap
    • Energising Coils  :  Two of approx. 13W each
    • Power  :  0-90Vdc, 3A, for coils in series
    • 0-45Vdc, 6A, for coils in parallel
  4. Constant Current Power Supply
  5. Gaussmeter
  6. 55539A Trolley
    • The experiment is complete in all respect.
