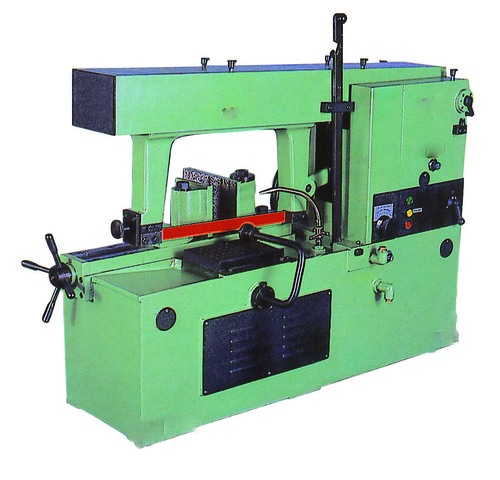

Automatic Power Hack Saw Machine
SPECIFICATION
Cutting Capacity-Round: Minimum Ø280 mm
Cutting Capacity-Square: Minimum 280 x 250 mm
Cutting Angel: 45? right and 45 ? left (or 0? to 45? in each direction).
Blade Size: 450 x 32 x 1.6 mm; tooth pitch 3 mm (8 TPI); M42 bi-metal HSS or Equivalent
Blade Drive Motor: Minimum 1.5 kW (2 HP).380V, 3 phase, 50Hz
Stroke Rate: Minimum 3 selectable speeds: 80, 100, 120 strokes pe, minute
Stroke Length: 138 mm
Feed Pressure Control: Hydraulic gravity reed with infinitely variable feed pressure control
Clamping: Hydraulic or mechanical material vice with jaw equalizer for clamping Irregular sections.
Coolant System: Re circulating flood coolant with pump and flow control valve
Auto Shut Off: Automatic cut-completion shut off with audible alarm.
Material Stops: Adjustable material length stop; support stands for long material
Machine Weight: Approximately 430 kg.
