1. General Technical Requirements

• High-quality hydraulic training system suitable for basic actuation of linear and rotary actuators.
• Brand-new equipment incorporating current design and material standards.
• All components to comply with applicable international hydraulic codes and standards.
• Warranty effective from the date of successful commissioning.
• Documentation to include manufacturing authorization, quality assurance certification, and company registration from the country of origin.

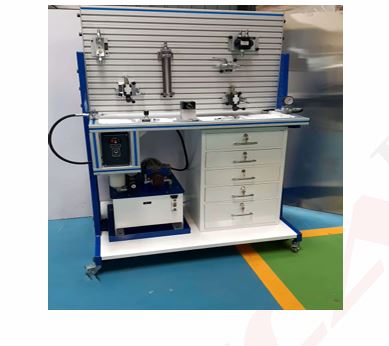

2. System Features – Double-Sided Hydraulic Trainer
The trainer shall be equipped with the following technical components :

• Hose Lines with Quick-Release Couplings : 600 mm ,1000 mm , 1500 mm
• Hydraulic Power Pack with dual constant-displacement pumps
• Safety Laboratory Cables (minimum 4 mm), 106 pieces (red, blue, black)
• System filled with hydraulic oil (DIN 51524)

3. Operating Requirements

• Industrial-grade valves, fittings, and actuators
• Quick-coupling pipe connections for rapid assembly/disassembly
• Components rated for pressures up to 300 bar
• High-strength steel frame with smooth finish
• Integrated pressure relief valve set to safe operating limits
• Main structure designed for easy mobility

3 Hydraulic Power Unit Specifications

• Driven by low-noise positive-displacement pump(s)
• Elevated hydraulic reservoir for improved air circulation and heat dissipation
• Suction strainer and return filter with bypass system
• Filter rating : ≥ 25 microns
• Magnetic drain plug on hydraulic oil tank

4. Scope of Supply

• Basic Double-Sided Hydraulic Trainer Kits with all accessories  : 2 Nos.
• Operating Manual (English), hard & soft copies : 2 Sets
• Service & Maintenance Manual (English), hard & soft copies : 2 Sets
• Spare Parts & Workshop Manual (English), hard & soft copies : 2 Sets
• Basic Level Hydraulic Trainer Book with Exercises : 2 Sets
• Electrical & Mechanical Toolboxes with Standard/Special Tools  : 2 Sets
