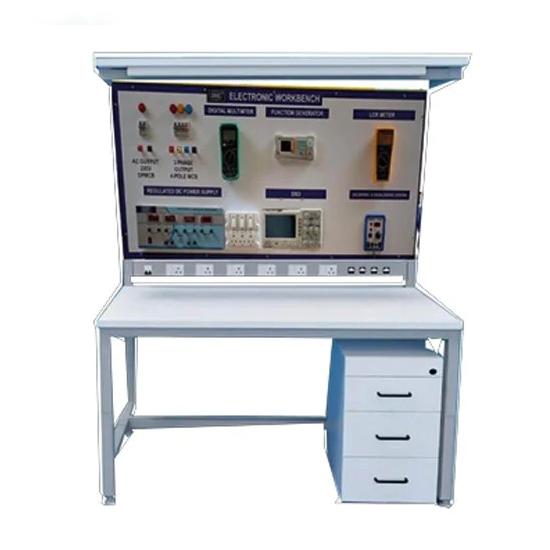

Basic Electronic WorkBench Structure
SPECIFICATION
Basic Electronic WorkBench Structure and design of WorkBench specifications:
• The basic structure is made of 38 x 38 x 1.5 mm CRC powder coated pipes for sturdiness. The overall dimensions of Workbench Length: 1200mm Width: 900 mm Height : 850 mm. Technical specifications of instruments and facility installed on the Workbench are as under:
1. 50MHz Economy Digital Storage Oscilloscope
2. 10MHz Function/Arbitrary Waveform Generator
3. Multiple DC Power Supply 4. Soldering and De-soldering Station 5. Digital Multimeter 6. A set of experimental boards on Fundamental of Transistor Characteristics, Rectifiers, Zener Diode Voltage Regulator, MOSFET, FET & UJT, FET Amplifiers and Diode characteristics setups. 7. Workbench Operation Learning Program
8. Single user teaching, learning material with animations and user interactive simulations. 9. Breadboard panel size 159mm X 246 mm( 3x2 breadboards)
50MHz Digital Storage Oscilloscope Bandwidth : 50MHz Realtime Sample Rate : 500MSa/s (Single Channel) Equivalent Sample Rate : 50GSa/s Number of Channels : 2 CH +1
Ext.
