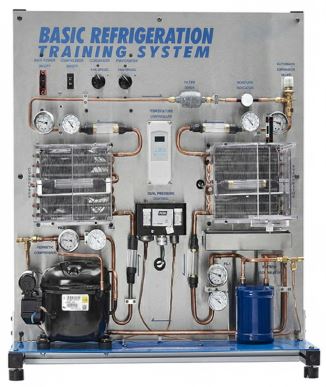

Basic Refrigeration Training System

Product description

1. This device can be used to train students to master theoretical knowledge and practice skills of the standard refrigeration system. It should include transparent sections in the refrigerant lines allowing students to observe the refrigerant as it changes from gas to liquid as it travels through various components. Temperature and pressure gauges are installed in multiple locations providing students with a better understanding of how the refrigeration cycle works
2. Power Supply: 240 Vac 50 Hz single-phase - 560 VA

Product composition
NO.1

1. Name of component: Hermetic Compressor
2. Specifications: 1/2HP, single phase 220V, control box
3. Quantity: 1 piece

NO.2

1. Name of component: Condenser
2. Specifications: Air-cooled type, single phase 220V, including copper tube with fixed sight glass transparent chamber
3. Quantity: 1 piece

NO.3

1. Name of component: Evaporator
2. Specifications: Tube air-cooled type, transparent chamber, damper
3. Quantity: 1 piece

NO.4

1. Name of component: Accumulator
2. Specifications: 1/2HP, copper tube with fixed sight glass
3. Quantity: 1 piece

NO.5

1. Name of component: Expansion valve
2. Specifications: Manual expansion valve (welding type)
3. Quantity: 1 piece

NO.6

1. Name of component: Electronic valve
2. Specifications: 3/8# nut clamp type or welding type
3. Quantity: 1 piece

NO.7

1. Name of component: Filter dryer
2. Specifications: 3/8# nut clamp type or welding type
3. Quantity: 1 piece

NO.8

1. Name of component: Sight glass
2. Specifications: Welding type or nut clamp type
3. Quantity: 1 piece

NO.9

1. Name of component: Digital thermometer
2. Specifications: Temperature control type
3. Quantity: 1 piece

NO.10

1. Name of component: High-low pressure switch
2. Specifications: LPS, HPS
3. Quantity: 1 piece

NO.11

1. Name of component: Safety device
2. Specifications: Blocking overvoltage (N.F.B), buzzer, fuse
3. Quantity: 1 piece

NO.12

1. Name of component: Manometer
2. Specifications: High pressure, low pressure
3. Quantity: 1 piece
