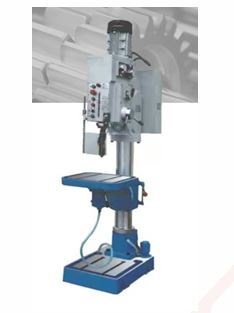

Bench drills
Order Code: 25268467.39
Category: General Lab Equipment V
Max. Drilling capacity -30 Max. travel of spindle -135mm Distance spindle axis to column generating line -315mm Distance from spindle nose to table -520mm Max. distance from spindle nose to base -1080mm Dia. o...
SPECIFICATION
Max. Drilling capacity -30
Max. travel of spindle -135mm
Distance spindle axis to column generating line -315mm
Distance from spindle nose to table -520mm
Max. distance from spindle nose to base -1080mm
Dia. of column -135mm
Spindle Taper -MT-3
Spindle Speed range -70-2600r/min
Spindle speed series -12
Spindle feeds -0.07-0.4(4)
Dimension of worktable surface (LxW) - 412X 412mm
Dimension of base table - 370 X 360mm
Motor power - 1.5kW
Coolant pump - 0.085Kw
STANDARD ACCESSORIES:
?6mm Drill Chuck with Key 1 No.
Arbor 1 No.
Necessary tools & Spanners 1 Set
Instruction Manual 1 No.
Taper Sleeve Set (MT1-3 & MT2-3) 1 Set
Drill Drift 2 Nos.
Safety Guard 1 No.
Drill Vice (125mm) 1 No.
Coolant System 1 No.
Machine Lamp 1 No.
Foundation Bolts 4 Nos
