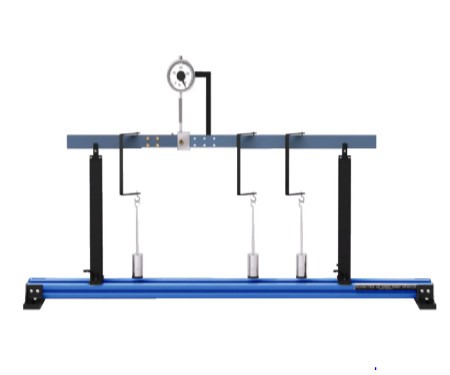

Bending moments in a Beam
SPECIFICATION
Specification:
? Fits to the Structures platform for ergonomic use
? Unique beam cut and load cell system for an accurate measurement of bending moment
? Includes multiple loads for many combinations of loads including uniformly distributed
loads (UDLs)
? Should be supplied a storage tray to keep smaller items safe
? Works with user-friendly software VDAS
? Direct reading of bending moment at the cut for quick and simple experiments
? User can apply loads to hangers suspended along the beam, held between two supports
? One support allows rotational movement only, acting as a pinned support and the other
support allows translational movement, acting as roller support
? The load cell at the cut at mid-span of the beam measures the bending moment due to
the load
? Includes a uniformly distributed load (UDL) that may be applied across the span of the
beam for comparison of results with a single point load
? The load cell connects to the USB interface hub of the Structures platform for computer
display and data acquisition
? Standard accessories with printed manual
? Experiments can be Performed:
? Bending moment at the cut due to a varying single point load
? Bending moment at the cut due to a moving single point load
? Bending moment at the cut due to a uniformly distributed load
? Influence lines and superposition
? Warranty: 1 (One) year with services
