BERNOULLIS THEOREM APPARATUS .
SPECIFICATION

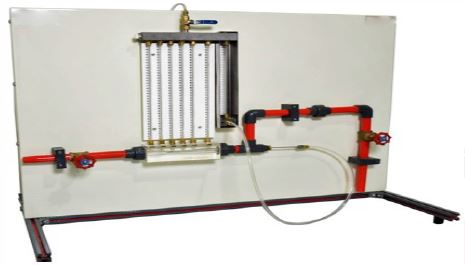

BERNOULLI’S THEOREM APPARATUS
General Description:
- Bernoulli’s theorem is applied on flow through a clear acrylic Venturi tube. The apparatus is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.
- Static pressures at various points along the wall of a transparent Venturi tube are directly measured on a manometer equipped with a vent valve. A movable stainless steel total head probe is also provided. Flow through the Venturi tube is controlled by a valve at the outlet. As a primary flow measuring device, coefficient of discharge for the Venturi tube can also be determined.
- Instruction manual is also included.
Experiment Capabilities:
- Application of the Bernoulli equation
- Measurement of the meter coefficient of discharge at various flow rates
- Comparison of experimental results with theoretical predictions
Technical Data:
- Diameters: 28 mm inlet with 14 mm throat
- Water manometer: 8 tubes
- Total head probe : 1
- Net (unassembled) Shipping Dimensions W x L x H : 36 x 60 x 83 cm
- Net Weight : Approx. 6 kg
- Catalog / Brochure should be submitted.
