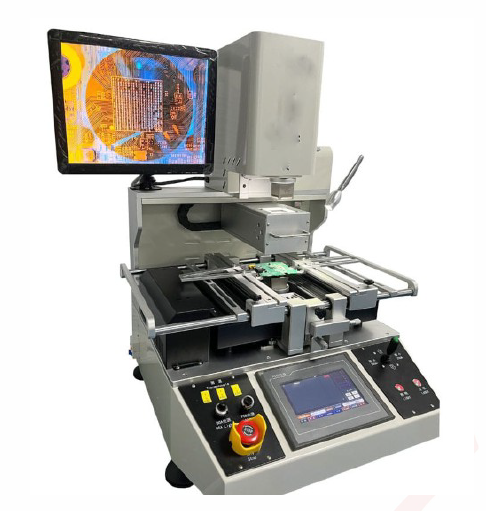

BGA Rework station
Order Code: 25268466.1.12
Category: General Lab Equipment V
Total power 5300W Upper heating power 1200W Lower heating power 1200W Lower infrared heating power 2700W?1200W control? Power supply (Single Phase) AC 220V±10 50Hz Positioning method V-slot + universal fixture + laser positioning light fo...
SPECIFICATION
Total power 5300W
Upper heating power 1200W
Lower heating power 1200W
Lower infrared heating power 2700W?1200W control?
Power supply (Single Phase) AC 220V±10 50Hz
Positioning method V-slot + universal fixture + laser positioning light for quick positioning
Temperature control
High-precision K-type thermocouple (Ksensor) closed loop control (Closed Loop), the upper and lower independent temperature measurement (+2 degree);
Electrical Selection Highly sensitive touch screen+micro controller?stepper drive
Max PCB size 460×380mm
Min PCB size 10×10mm
Temperature sensor 3pcs
Chip magnification 1-200 times
PCB thickness 0.5-8mm
Applicable chips 0.8mm-6mm
Minimum chip pitch 0.15mm
Maximum load for mounting 100G
Mounting accuracy ±0.01mm
Overall dimensions L660×W640×H870mm
