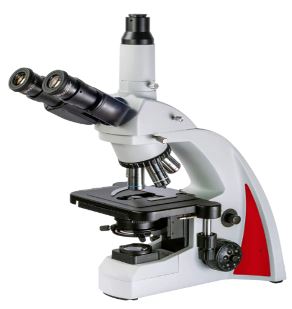

Biological Microscope

1. Application: Safety features help ensure that the eyepieces, observation tube, objectives, and stage are protected from damage while it is transported or during prolonged and repeated use. Easily adjust the interpupillary distance and eyepoint height.

Technical specifications Microscope:

1. Dimensions (W×D×H) mm: Trinocular: 198 × 398 × 430 (±30mm)
2. Observation Method: Brightfield, Darkfield
3. Objectives: Plan Achromat 4x, 10x, 40x, 100x Oil
4. Head: Binocular, 30° inclined and rotatable 360°
5. Eyepieces: 10x with a 20mm field of view
6. Illuminator: Transmitted Illuminator: LED Lamp: approx. 20,000-hour long lifetime
7. Focus: Focusing Mechanism: Stage Focus
8. Coarse Handle Stroke: 15mm
9. Features: Coarse adjustment limit stopper Torque adjustment knob
10. Field Diaphragm: Trinocular
11. Revolving Nosepiece:
12. Manual: Standard (4 positions)
13. Stage: Manual
14. Manual Stages with Right-Hand Control: Built in X:76mm, Y: 30mm
15. Condenser: Manual
16. Abbe Condenser: NA 1.25/W.D.-(4X-100X) (Built-in)
17. Observation Tubes Standard: Trinocular
18. Tube Inclination Angle: Approx. 30°
19. Trinocular Tube Light Path Selection (Camera:?Observation): 0%:100%, 100%:0%
20. Interpupillary Distance Adjustment: Min. 48 to Max. 75mm
21. Power Supply: AC 220V- 240V with adapter
22. Weight: 6.5kg (±0.5kg)

Camera specification:

1. Smart Image Averaging suppresses noise and eliminates artifacts.
2. Focus peaking function for thick specimens, that helps identify which sample regions are currently in focus.
3. High contrast mode enables easier image acquisition.
4. Fast Live function provides a consistently high displayed frame rate during long-exposure imaging.
5. Type: 6.4-megapixel colour camera
6. Imaging Sensor:
7. Sensor type: 1/1.8-inch colour, Colour CMOS
8. Shutter type: Rolling Shutter
9. Pixel size: 2.4 μm × 2.4 μm
10. Dynamic range: 10 bits
11. Sensitivity, Gain: 1 – 24
12. Live images: 60 fps full HD
13. Camera adaptor: C-mount
14. Exposure Time (Manual/Auto): 13 μs to 15s
15. Camera I/F: USB 3.1 Type-C with cable length at least 2.9m
16. Image size (W × H): 1920 × 1080
17. Zooming magnification: 10% to 1600%
18. Dimensions of Camera head (W × D × H) mm: Approx. 76.7 × 70.1 × 37.3
19. Software at least to be included for program: TruSight deconvolution.
20. Graphic Experiment Manager (GEM) and Well? Navigator tool for acquiring images in five dimensions.2. Camera specification:
21. Smart Image Averaging suppresses noise and eliminates artifacts.
22. Focus peaking function for thick specimens, that helps identify which sample regions are currently in focus.
23. High contrast mode enables easier image acquisition.
24. Fast Live function provides a consistently high displayed frame rate during long-exposure imaging.
25. Type: 6.4-megapixel colour camera
26. Imaging Sensor:
27. Sensor type: 1/1.8-inch colour, Colour CMOS
28. Shutter type: Rolling Shutter
29. Pixel size: 2.4 μm × 2.4 μm
30. Dynamic range: 10 bits
31. Sensitivity, Gain: 1 – 24
32. Live images: 60 fps full HD
33. The set of Computer included:
34. Monitor Size: 27 inches or higher
35. Resolution: 4K
36. Brightness: at least 350 cd/m²
37. CPU: 14 gen intel core i5 or higher
38. Ram: 16 GB
39. Storage SSD: 1 TB
40. Graphic: Intel® UHD 730 or better
41. OS: Windows Licences 11 Professional (64bit)
42. Speaker: built-in
43. Port: HDMI, USB-C
44. The set include UPS: 3KVA that can support the microscope and computer.

Requirement:

1. Standard and Compliance: : ISO certificate ISO9001:2015 and ISO14001:2015 or equivalent.
2. Language: English language available on machine and manual.
3. Warranty: At least 2 years on Mechanical, Electrical parts and Services.
4. Include Installation and Training:
5. On-site installation performed by certified technicians.
6. User training covering equipment, full operation
