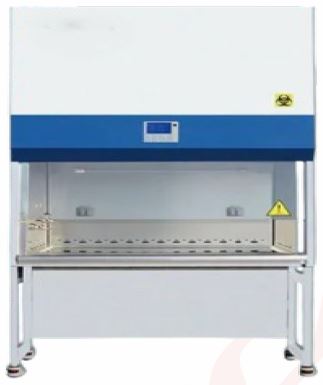

Biological Safety Cabinet

• Color key display: large screen, more clear and dynamic display of various values of the safety cabinet,and has the function of appointment timing.
• With power-off memory function, the state before power-off will be restored after power-on, and there will be visual prompts and alarms.
• The integrated design of the operation area makes it easy to disassemble and clean.
• The cabinet is separated from the base.The height of the base can be customized. Interlocking function: UV lamp and front window; UV lamp and fan, LED lamp, fan and front window.
• It has the function of appointment timing,which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps,fans and sockets.
• The front window closes the double trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on.
• The front window glass has a one-key lift function.
• The cabinet is designed with a 7° inclination angle,which is in line with ergonomic principles,with a larger viewing angle,convenient operation and more humanization.
• The one-piece hand rest has a large flat surface,which has a larger contact area with the arm and is more comfortable.

 Specification

• External Dimensions (W*D*H)(mm) 1300*760*2200
• Internal Dimensions (W*D*H)(mm) 1150*600*660
• Tested Opening Safety height 200mm
• Max. Opening 480mm
• Inflow Air Velocity 0.53±0.025m/s
• Down flow Air Velocity 0.33±0.025m/s
• ULPA Filter 2pcs, 99.9995% efficiency at 0.12μm, filter life indicator
• Front Window Motorized, 6mm two-layer laminated toughened glass, Anti UV
• Sound Emission ≤65dB
• UV Lamp 30W*1
• LED Lamp 14W*2
• Illumination ≥1000Lux
• Consumption 800W
• Waterproof Socket Total load of two sockets:500W
• Display Color Touch Screen
• Control System Microprocessor
• Airflow System 70% air recirculation, 30% air exhaust
• Visual and Audio Alarm Abnormal airflow velocity,filter replacement,front window at unsafe height,high filter pressure alarm,abnormal power failure
• Material Work Zone: 304 stainless steel
• Main Body:Cold-rolled steel with anti-bacteria powder coating
• Work Surface Height 770mm (Can be customized)
• Caster Footmaster caster
• Electricity AC 220V 50/60Hz; 110V/60Hz
• Standard Accessories LED lamp*2pcs, UV lamp*2pcs,
• Base stand*1pc, Foot switch*1pc, Drain valve*1pc,
• Water-proof socket*2pcs
• Optional Accessories Water and gas tap
• N.W/G.W(kg) 255/360
