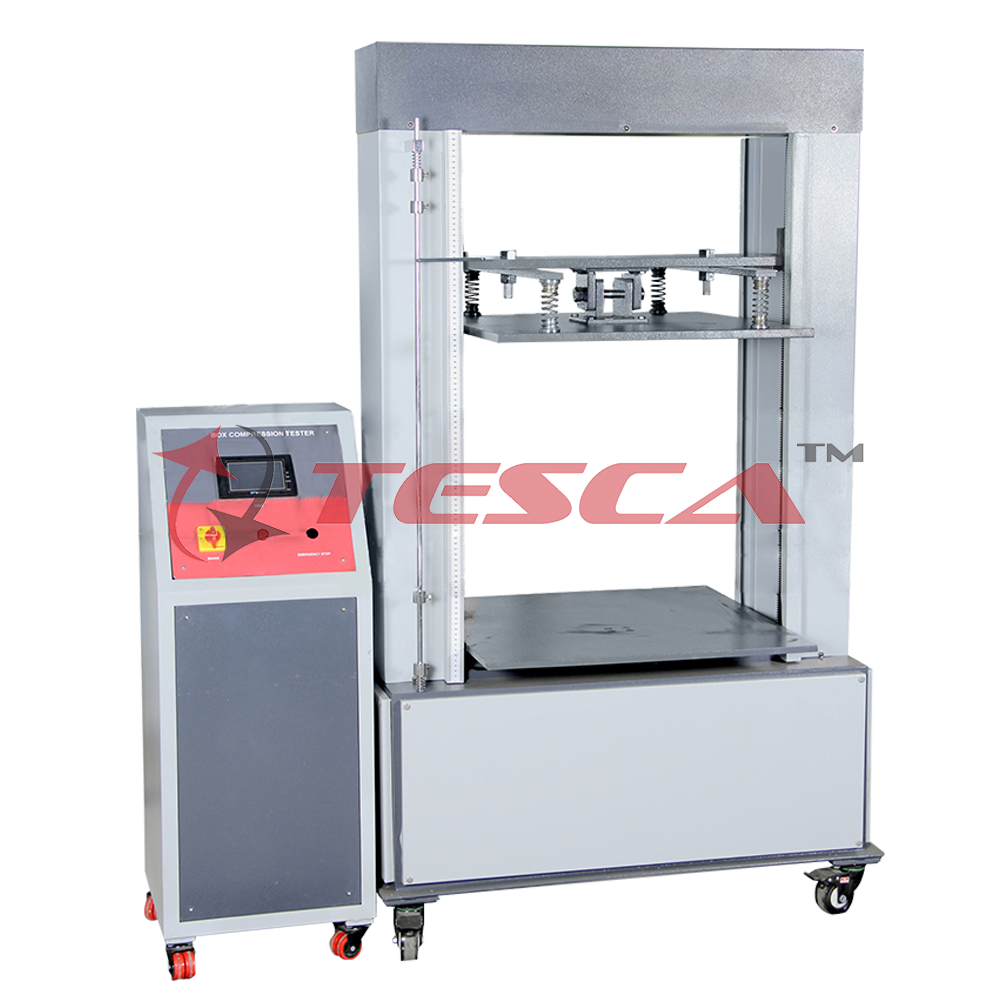

Box Compression Strength Tester 600 X 600mm
Order Code: MT894
Category: Paper and Packaging Test Equipment's
Salient Features Digital Electro ? mechanical model. Digital Model with Backlit LCD Display for easy readability Direct Display of Load / Collapsing Force & Deflection /Compression No Calculations Required Auto?stop upon completion ...
SPECIFICATION
Salient Features
- Digital Electro ? mechanical model.
- Digital Model with Backlit LCD Display for easy readability
- Direct Display of Load / Collapsing Force & Deflection /Compression
- No Calculations Required
- Auto?stop upon completion of Test
- Unlimited programmable memories
- Continuous rate of Loading
- Stepper Motor controlled operation
- 2/4 load cells for highest accuracy
- Selectable compression units N/Kgf /KN
- RS?232 data output facility
- PC Software (See optional accessories)
- Reputed make electric motor and its drive
- Supplied complete with calibration certificate of Load cell traceable to National Standards
- Also, supplied complete with instruction manual and IQ/OQ/PQ Documents (For pharma industries)
Testing Principle
Constant Rate of Loading With non?destructive testing facility for cartons at predetermined load. Unlimited programmable memories
Utilities Required (To be supplied by the buyer)
Power Supply : 440 Volts, 50 Hz, 3?Phase AC Supply (Fluctuation Free Power required)
100 Kg Cast Iron Weights (In any combination. Preferably, 20kg x 5 nos). These weights are required for calibration at the time of installation and then every 6?months for routine calibrations.
|
Technical Specification |
|
|
Loading Capacity |
1000 Kgf |
|
Least count |
20 Grams (0.02 Kg) |
|
Display |
Touch screen HMI |
|
Controlling System |
PLC (Programmable Logic Controller) |
|
Suitable for a Testing Range |
10-1000 Kgf |
|
Auto Calibration facility |
At 100 Kgf |
|
Machine Platform Size |
600 X 600 mm (Approximately) |
|
Speed Range |
0.01 - 70 mm/min |
|
Operating Speed |
10 ± 3 mm/min (As per standard) |
|
Can accommodate Max Carton |
550 x 550 x 950 mm (H) can be accommodated |
|
Unit Selection |
N / Kgf / KN |
|
Power Supply |
440 Volts, 50 Hz, 3 Phase AC Supply |
