General Description:

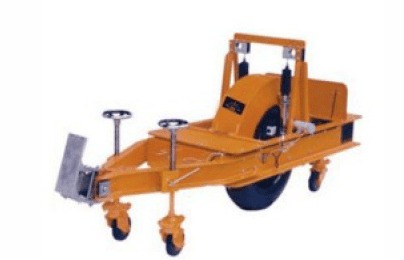

The Smart Bump Integrator (BI) is a response-type road roughness measuring system designed to evaluate road surface condition by measuring the relative vertical displacement of a vehicle’s suspension with respect to the vehicle body.

The system records raw bump data and converts it into calibrated roughness indices such as IRI (International Roughness Index) using user-defined calibration equations.

When properly calibrated, the system delivers accuracy comparable to or exceeding conventional bump integrators.

Technical Specifications :

Bump Integrator Encoder

• Type: Mechanical response-type roughness sensor

• Sensing Principle: Relative displacement measurement between vehicle body and suspension

• Encoder Type:
  High-resolution optical encoder
  High reliability and long service life

• Function:

Converts suspension movement (“bumps”) into electrical signals

Transmits signals to the control panel for processing

• Installation Location:
  Mounted on vehicle floor above rear suspension

• Mounting Configurations Supported:
  Solid rear axle (Half-car measurement)

Independent rear suspension – dual unit (Quarter-car average, recommended) Independent rear suspension – single unit (Quarter-car, not recommended)

Control Panel (Controller Unit) :

• Function:
  Receives raw signals from encoder
  Processes bump data in real time
  Communicates processed data to display device

• Communication:
  Wireless data transmission to Android tablet

• Interfaces:
  Power input
  Data input from encoder

• System Role:

Core processing unit of the BI system

Display & Data Processing Unit :
Type: Android Tablet (supplied with system)

Functions:
Real-time display of road roughness data
a. User control and command interface
b. Data storage, processing, and reporting
c. Displayed Live
Parameters:

• Distance

• Vehicle speed

• Bump count

• WRC (Wheel Revolution Count)

• IRI

• Road condition classification
  Data Storage:

• Internal database within the tablet

Output Format:

• Exportable reports in Excel (.xls / .xlsx) format

Software & GUI Features :

• Home Screen Functions:

New Project creation

Access to saved projects

System information

Help menu

Hotspot ON/OFF

System settings

• Data Visualization:

Distance vs Bump Graph

Speed vs Bump Graph

Result / Condition Graph

Bar Graphs and Pie Charts

• Mapping Function:

GPS-based road condition mapping

Road displayed on map with color-coded condition classification

Latitude & Longitude logging

• Calibration & Settings

Calibration Equation

[ Y = aX + b ]

Where:
X = Raw bump data

Y = Calibrated roughness value (e.g., IRI)

• User-configurable Parameters:
  IP address of control panel

Calibration constants a and b

• Operational Features

Minimal operator intervention during surveys

Real-time data acquisition and display

Automatic data saving upon completion of WRC

Manual save option if WRC is incomplete

Pass / Release function for skipping road sections

Reset function for clearing current readings

• Installation Requirements •

Installation above rear suspension

Supplied mounting accessories

Suitable for rugged and extreme road conditions

Quick installation and easy field serviceability

• System Advantages:
  Proven response-type roughness measurement technology

Low cost compared to vehicle-mounted profilers

Wireless operation

Live IRI and road condition monitoring

Strong analytical and reporting tools

One-click report generation
