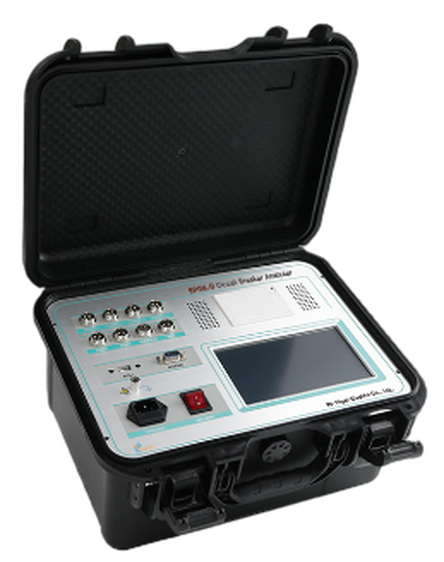

Circuit Breaker Characteristics Analyzer
Order Code: 22235986.8
Category: General Lab Equipment I
Input power: 220V±10% 50Hz±10% Atmospheric pressure: 86~106kpa ? Temperature: Temperature Humidity: <80%RH Insulation resistance:>2MΩ Saftey Performance: Power to chassis frequency voltag...
SPECIFICATION
- Input power: 220V±10% 50Hz±10%
- Atmospheric pressure: 86~106kpa ?
- Temperature: Temperature
- Humidity: <80%RH
- Insulation resistance:>2MΩ
Saftey Performance:
- Power to chassis frequency voltage withstands 1.5KV, 1 min, no flashover and arcing.
- Time: Range: 4000.0ms, resolution: 0.1ms
- error: < 100ms, 0.1ms±1d >100ms, 0.1%±1 synchronous
- Speed: Range: 20.00m/s, resolution 0.01m/s error:0~2m/s : ±0.1m/s±1d >2m/s, ±0.2m/s±1d
Basic parameters:
- Range: Vacuum Circuit Breaker: range-50.0mm, resolution-0.1mm, error-1%±1d
- SF6 Circuit Breaker: range-300.0mm, resolution-1mm, error-1%±1d
- Oil-minimum breaker: range-600.0mm, resolution-1mm, error-1%±1d
- Current: Range: 20.00A, resolution: 0.01A
- Output power: DC30~250V digitally adjustable /20A (Instantaneous)
