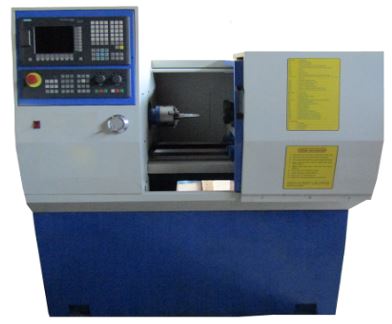

CNC Lathe with Siemens Controller & 8 Station Tool Turret

1. Application: for training and manufacturing of parts for prototype development and used for CNC Training & Education Small Batch Production, Internal & External Machining, Machining Long Workpieces.

Technical specification:

1. - Dimensions (L×W×H) mm: 1400 × 900 × 1850 (±100 mm)
2. - Weight: 500Kg (±10Kg)
3. - Controller: Simens Advance
4. Working Area: - Workpiece length (max.): at least 280 mm
5. - Turning diameter over bed: at least 200 mm
6. - Turning-Ø over support: at least 90 mm
7. Travels: - Travel X-axis: 86mm
8. - Travel Z-axis: 155 mm
9. Headstock:- Speed range: Min. 100 to Max. 3000 RPM
10. - Spindle bore: at least 20 mm
11. - Lathe chuck diameter: at least 100 mm
12. Rapid Feed:- Rapid feed: at least 2000 mm/min
13. Feed:- Feed speed: at least 1000 mm/min
14. - Max. torque feed motor: at least 2.2 Nm
15. Tooling:- Number of tool stations: at least 8 positions
16. - Tool shank dimensions: Approx. 8 mm × 8 mm
17. - Boring bar mount Ø: Approx. 12 mm
18. Accuracies:- Positioning accuracy X-axis: 0.022 mm
19. - Positioning accuracy Z-axis: 0.022 mm
20. - Repeatability X-axis: 0.01 mm
21. - Repeatability Z-axis: 0.01 mm
22. Tailstock:- Tailstock quill diameter: at least 20 mm
23. - Tailstock quill stroke: at least 30 mm Spindle
24. - Hydraulic 100 mm 3-jaw chuck and rigid tailstock are included in standard equipment
25. - Max. spindle speed: 3.000 rpm
26. - Spindle bore: Approx.20 mm
27. Drive Capacity: - Motor rating main drive: at least 1 kW
28. - Power Supply: AC 220V-240V single phase or AC 380V three phases
29. Standard Equipment:- CNC control system with CNC software and 8.4-inch LCD display
30. - Electronic Hand-wheel
31. - 8-station tool turret with 4 tools per station for inside and outside turning
32. - Mobile base
33. - Tailstock
34. - 3-jaw chuck
35. - Central lubrication
36. - Work lamp
37. - Operating tools

Standard Requirement:

1. - Production Standards: Must hold a valid ISO 9001:2015
2. Quality Management System certification.
3. - Supplier Requirement Experiences: at least 5 years.
4. - Manufacturing History & Scale:
5. - Years in Business: The manufacturer must have at least 10 years of experience in producing industrial CNC equipment.
6. - Language: English language available on machine and manual.
7. - Warranty: At least 2 years on Mechanical, Electrical parts and Services.
8. - Include Installation and Training:
9. • On-site installation performed by certified technicians.
10. • User training covering equipment, full operation, maintenance, (minimum 1 full training session) at least 5 trainees.
11. • Provision of training materials, including user manuals
