Type

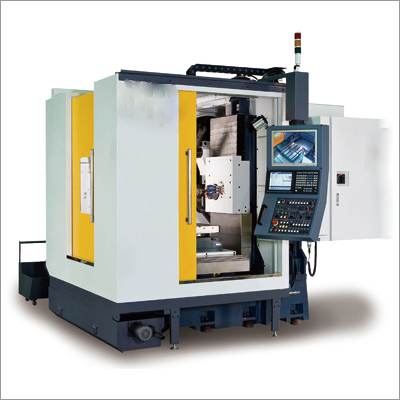

Vertical 3-axis CNC machining center for milling, drilling, boring, tapping, and contouring. industrial-grade quality for precision machining and TVET training. Supplied complete with CNC controller. ATC, full enclosure, and AVR.
X Axis Stroke
Minimum 660mm
Y Axis Stroke
Minimum 430 mm
Z Axis Stroke
Minimum 400 mm
Table Size
Minimum 720 x 400mm working surface.
T-Slots
Minimum 3 T-slots, width18 mm, pitch 100mm per ISO 299
Table Load
Maximum table load: minimum 500 kg
Max Spindle Speed
Minimum 10,000 rpm; variable speed
Spindle Motor
Continuous (S1) minimum 7.5 kW; 30-min(S6) minimum 11 kW
Spindle Taper
ST40 or ISO 40 (ISO 7388). To be confirmed by bidder.
Servo Motor (X/Y/Z)
Minimum 1.8/1.813.0 kW servo drives with encoder feedback
Automatic Tool Changer
Minimum 20 tool magazine, tool to toll change time ≤ 3 seconds.
Positioning Accuracy
± 0.005 mm per ISO 230-2:2014
Repeatability
± 0.003 mm per ISO 230-2:2014
Coolant System
Flood coolant with pump; chip-flushing coolant; tank minimum 320 L
AVR
Automatic Voltage Regulator (3-phase, min. 27 kVA), with over/under voltage and phase-failure protection. Regulation ±5%.
CNC Controller
Reputable CNC controller (Fanuc, Siemens, Heidenhain. Or equivalent): full 3-axis G/M-code support; USB/RS-232/Ethernet: English interface.
Machine Weight
Minimum 4,000 kg (indicative)
Tool Holders
Minimum 10 BT40/ISO 40 toolholders (end mill, drill, boring, tap holders)
Cutting Tools
Initial cutting tool set face mill. End mills (4-flute assortment), drill set.
Vise.
Machine vise, precision milling type, minimum 125 mm jaw width
