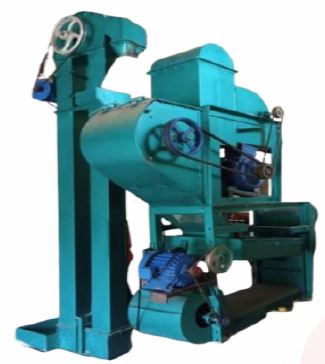

Coffee Hulling and grading machine

1. Purpose: To hurl (propel) coffee beans at controlled speeds and angles for separation based on density, size, and defects.

Process Stages:
            1. Feeding & Pre-cleaning – Removal of large debris, stones, and dust.
            2  Hurling Chamber – Beans are propelled against an airflow or adjustable baffles.
            3. Grading/Separation – Separation by density, size..
            4. Collection Hoppers – Separate outlets for graded beans and rejects.

Key Technical Specifications

1. Throughput: 4,000 kg/hour
2. Power Supply: 380–480V, 3-phase, 50/60 Hz
3. Airflow System: Adjustable fan/blower, capable of 5,000–8,000 m³/h
4. Hurling Mechanism:
5. Adjustable rotor speed: 200–800 rpm
6. Variable throw angle and velocity
7. Grading System:
8. Multi-stage sieves (perforated screens)
9. Construction Material:
10. Contact parts: Food-grade material
11. Frame: Powder-coated carbon steel
12. Noise Level: < 85 dB(A) at 1 meter
13. Dimensional & Layout Requirements
14. Footprint: approx. ~ 3.5 m (L) × 2.5 m (W) × 3.0 m (H)
15. Feed Hopper Capacity: 1,000–1,500 kg (15–20 minutes buffer)
16. Outlet Ports: Minimum 4 grades + 1 reject outlet
17. Access Doors: For inspection, cleaning, and screen changes .
18. Control & Automation
19. Control Panel:
20. Adjustable Parameters:
21. Feed rate
22. Rotor speed
23. Airflow velocity
24. Screen angles/vibration intensity
25. Safety Features: Emergency stops, motor overload protection, safety interlocks on access points
26. Operational Requirements
27. Dust Extraction: Integrated cyclone or connection to central dust collection
28. Performance Metrics
29. Separation Efficiency: > 95% for density/size grading
30. Bean Damage: < 0.5% broken/cracked beans
31. Yield Loss: < 2% to reject stream
32. Uptime: > 95% in continuous operation
33. Deliverables
34. Machine with all electrical and pneumatic connections
35. User manual and maintenance guide
36. Installation, Training, and Commissioning
37. Includes setup of the machine, calibration, and initial testing
38. All necessary installation materials and tools should be provided
39. Training:
40. Comprehensive training program for operators and maintenance staff
41. Includes machine operation, safety protocols, troubleshooting, and maintenance
42. Training materials and manuals provided
43. Full commissioning service to ensure the machine is operating at optimal performance
44. Includes fine-tuning of settings for specific bean types and conditions
45. Pre-Hulling Cleaning System: Module for removing impurities before hulling
46. Customization: Customizable settings for different bean types and conditions
47. Warranty: 1-2 years (depending on manufacturer), with options for extension
48. Support: on call, on-site technician support, training programs
49. Spare Parts: should be Readily available spare parts for maintenance and repair
50. Compliance: Meets international safety and quality standards.
