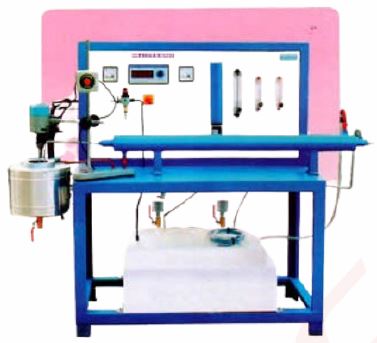

Combined Reactor: Plug Flow Reactor (PFR) with Continuous Stirred Tank

Order Code: 26279647.5

Category: General Lab Equipment V

Combined Reactor: Plug Flow Reactor (PFR) with Continuous Stirred Tank



SPECIFICATION

Combined Reactor: Plug Flow Reactor (PFR) with Continuous Stirred Tank

  1. Automatic temperature and flow control with PID controller
  2. Plant supervision by P.C.
  3. Exercises that can be carried out: Kinetics of hydrolysis of ethyl acetate
  4. Framework of AISI 304 stainless steel with castors
  5. Two feeding tanks of AISI 316 stainless steel, 10 L capacity each
  6. Product collection tank of AISI 316 stainless steel, 20 L capacity
  7. Tubular (PFR) reactor with 2 L capacity and jacket of AISI 304 stainless steel
  8. CSTR unit with stainless steel construction
  9. Electronic conductivity meter
  10. Two variable area flow meters
  11. Neutralization tank of borosilicate glass, 2 L capacity
  12. Two reactors of AISI 304 stainless steel, 3 L capacity each with stirrer and heater
  13. Two metering pumps of AISI 316 stainless steel (flow rate 0 – 8.4 L/h)
  14. Metering pump for neutralization solution (flow rate 1.5 L/h max.)
  15. Four thermo-resistances Pt 100 with AISI 316 stainless steel sheath
  16. Four electronic temperature indicators
  17. IP55 Switchboard with EC conformity, plant synoptic & ELCB
  18. Emergency stop button
  19. Microprocessor digital PID controller with serial card
  20. Supervision software for Windows for ON/OFF control, PID signal monitoring, real-time trend, and historical trend
  21. Power Supply: 230Vac, 50 Hz, single-phase – 3 kVA
  22. Dimensions: 1750 × 700 × 2100 mm
  23. Weight: 250 kg
  24. Supplied with THEORETICAL – EXPERIMENTAL HANDBOOK
