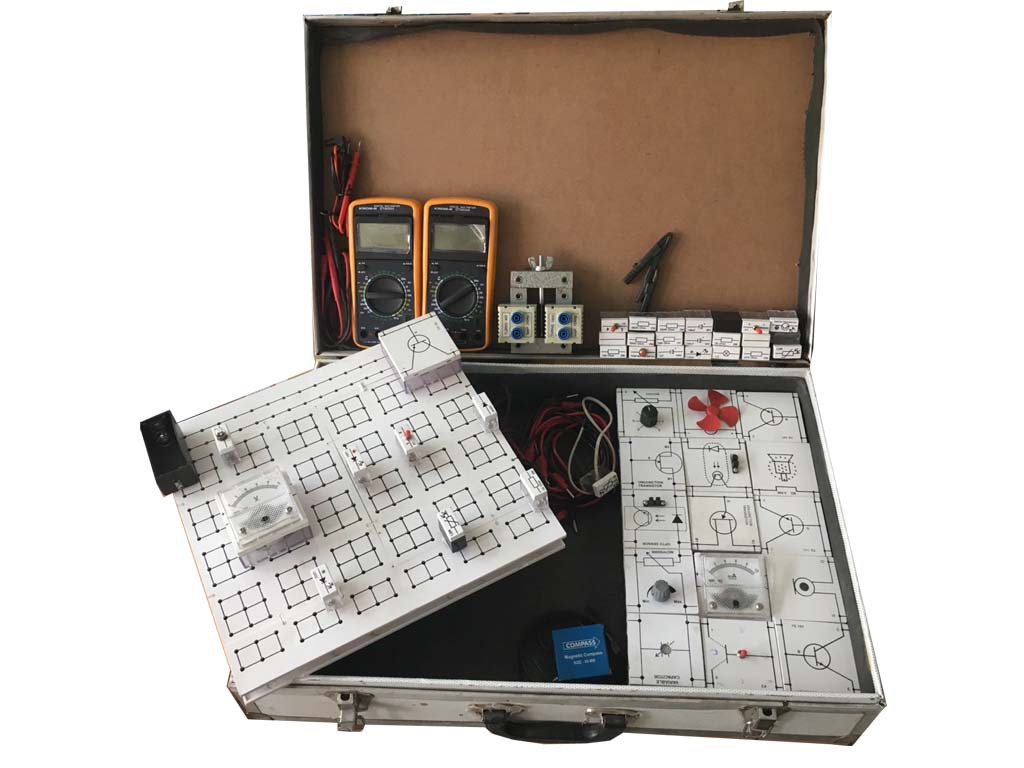

The set consisting of: 1 Complete Equipment DC/AC/EL Optimized equipment set to carry out experiments from the following topic groups: DC Technology AC Technology Discrete components and basic electronic circuits Components...
The set consisting of:
1 Complete Equipment DC/AC/EL
Optimized equipment set to carry out experiments from the following topic groups:
DC Technology
AC Technology
Discrete components and basic electronic circuits Components:
1 Resistor 0.1 ohm, 2 W
1 Resistor 0.22 ohm, 2 W
1 Resistor 1 ohm, 2 W
2 Resistors 10 ohm, 2 W
1 Resistor 47 ohm, 2 W
2 Resistors 100 ohm, 2 W
1 Resistor 150 ohm, 2 W
1 Resistor 220 ohm, 2 W
1 Resistor 330 ohm, 2 W
1 Resistor 470 ohm, 2 W
1 Resistor 1 kohm, 2 W
1 Resistor 1.5 kohm, 2 W
1 Resistor 2.2 kohm, 2 W
1 Resistor 3.3 kohm, 2 W
1 Resistor 10 kohm, 0.5 W
1 Resistor 47 kohm, 0.5 W
1 Resistor 100 kohm, 0.5 W
1 Resistor 330 kohm, 0.5 W
1 Resistor 1 Mohm, 0.5 W
1 Potentiometer 220 ohm, 3 W
1 Potentiometer 1 kohm, 1 W
1 Potentiometer 10 kohm, 1 W
1 Potentiometer 100 kohm, 1 W
1 VDR-Resistor 1 Photoresistor LDR 05
1 NTC-Resistor 150 ohm, 1 W
1 PTC-Resistor 150 ohm, 1 W
1 Capacitor 100 pF, 160 V
1 Capacitor 22 pF, 100 V
1 Capacitor 0.1 µF, 100 V
1 Capacitor 1 µF, 100 V
1 Capacitor 2.2 µF, 63 V
2 Capacitors 4.7 µF, 63 V
1 Capacitor 10 µF, 35 V
1 Capacitor 47 µF, 40 V
1 Capacitor 100 µF, 35 V
2 Capacitors 470 µF, 16 V
1 Light emit. diode red, LED 2, top
1 Light emit. diode infrared, lateral
1 Light emit. diode green, LED1, top
1 Light emit. diode red, lateral
1 Ge diode AA 118
4 Si diodes 1N 4007
1 Z diode ZPD 6.2
1 Z diode ZPD 9.1
1 Diac BR 100
1 Photo-diode BPX 43
1 Transistor BD 137 (NPN), e.b
1 FET-transistor BF 244
2 Thyristors TYN 1012
1 Triac BT 137/800
1 Inductance 33 mH
2 Lamp holders E10, lateral
2 Lamp holders E10, top
2 Key switches, single-pole 2 Change-over switches, single-pole
1 Relay w. single-pole change-over
1 Coil 500 turns
1 Coil 1000 turns
1 Transformer core, demountable
2 Plug-in battery holder
2 Mono cells 1.5 V
1 Magnet with core
1 Set 10 incand.lamps 4 V/0.16 W, E10
1 Set 10 incand.lamps 12 V/3 W, E10
1 Set 10 incand.lamps 2.5 V/0.25 W, E10
1 Set 10 incand.lamps 6 V/3 W, E10
1 Glow lamp 110 V, E10 Accessories:
1 Case Large, with Equipment:
1 Rastered socket panels DIN A3
1 AC/DC Stabilizer
1 Function generator 200 kHz
3 Sets of 10 Bridging Plugs
1 Set of 30 Connecting Leads 1 mm²
1 Book: DC Technology
1 Book: AC Technology
Note: CBT software, instructor's manual colour print, including CD-ROM (contents same as in student manual, however with solutions), student's manual colour print, including CD-ROM, Quick Start Guide, coloured laminated, ISO Standard must be included.
