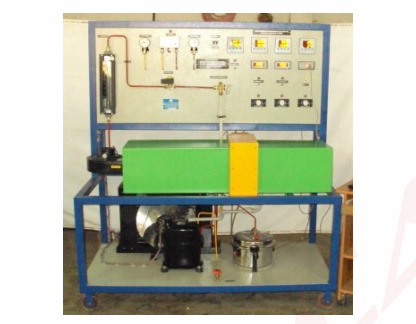

Computerized HVAC Air-Conditioning Trainer
Order Code: 25268595.82
Category: General Lab Equipment V
1. Structure and Design Material: Steel structure mounted on wheels, painted and oven-treated for durability Dimensions: Varies by model Example: 180 × 80 × 180 mm (small model) 1500 × 750 &ti...
SPECIFICATION
1. Structure and Design
-
Material: Steel structure mounted on wheels, painted and oven-treated for durability
-
Dimensions: Varies by model
-
Example: 180 × 80 × 180 mm (small model)
-
1500 × 750 × 1650 mm (large model)
-
-
Weight: Approximately 235 kg
2. Power Supply
-
Voltage: 230 Vac, 50 Hz, single-phase
-
Power Consumption: 1500 VA – 4 kW (model-dependent)
3. Key Components
Air Handling Unit (AHU):
-
Air circuit: Inlet, return, and bypass ducts; cooling & dehumidification battery; steam humidification battery; heating battery
-
Axial fan for airflow management
-
Control systems: Proportional control, ON/OFF step control, and dampers for temperature regulation
Refrigeration Circuit:
-
Components: Hermetic compressor, forced-air condenser, thermostatic expansion valve (TEV), water evaporator
-
Instrumentation: High/low pressure gauges, thermometers, hygrometers, digital multimeters
Water Circuit:
-
Components: Centrifugal pump, on/off valves, flow switch
Data Acquisition:
-
PC interface with USB communication for real-time monitoring
-
Sensors for temperature, humidity, pressure, and flow rate with digital displays
4. Training and Learning Objectives
-
Use psychrometric charts to study air transformations
-
Assess heat balances in air handling units
-
Analyze temperature and humidity control mechanisms
-
Perform practical experiments on system supervision and control under varying thermal loads
