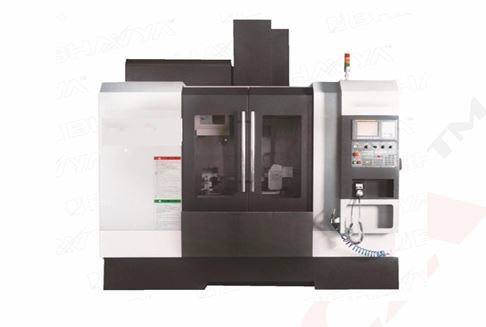

COMPUTERIZED NUMERICAL CONTROL (CNC) MILLING MACHINE
Order Code: 25269166.1
Category: General Lab Equipment V
Key Features 10000rpm (BT40/150) belt-driven Spindle- Taiwan brand, 3 axis linear guideway & ball screw- PMI, Bearings-KOYO Couplings-H+W, 16T Arm-type tool magazine- OKADA Central lubrication-ISHAN Pneumatic parts-mindman Mai...
SPECIFICATION
Key Features
- 10000rpm (BT40/150) belt-driven Spindle- Taiwan brand,
- 3 axis linear guideway & ball screw- PMI,
- Bearings-KOYO
- Couplings-H+W,
- 16T Arm-type tool magazine- OKADA
- Central lubrication-ISHAN
- Pneumatic parts-mindman
- Main electric parts-SCHNEIDER,
- Heat exchanger,
- Door-safety interlock, -OMRON
- Electronic handwheel, -included
- Work lamp, tri-color warning light, air gun, coolant spray gun- included
- High press FLUSING system
- M30 power off function
Technical Specifications
Parameter/Specification
- Table Size (mm) : 700 × 400
- Table Maximum Load (kg) : 350
- X / Y / Z Axis Travel (mm) : 600 × 400 × 400
- Distance Between Spindle Center & Column (mm) : 450
- Distance Between Spindle End Face & Worktable Surface (mm) : 120–520
- X / Y / Z Max. Feed Speed (mm/min) : 10,000
- X / Y / Z Max. Rapid Traverse (m/min) : 24 / 24 / 24
- Spindle Speed (r/min) : 10,000
- Spindle Taper : BT40
- Spindle Motor Power (kW) : 5.5 / 7.5
- X / Y / Z Servo Motor Power (kW) : 2.0 / 2.0 / 3.0
- T-Slot (mm) : 4-14 × 100
- Positioning Accuracy (mm) : ±0.003
- Repeat Positioning Accuracy (mm) : ±0.0015
- Tool Capacity : 16T (Arm Type)
- Maximum Tool Weight (kg) : 7
- Maximum Tool Length (mm) : 250 / 300
- Electric Capacity (KVA) : 11
- Machine Dimensions (mm) : 2230 × 2240 × 2450
- Net Weight (kg) : 2900
