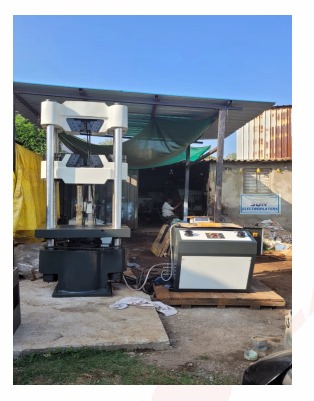

Computerized Universal Testing Machine
Order Code: 25268595.53
Category: General Lab Equipment V
Test Capacity and Dimensions Maximum load capacity: 1000 kN (1000 metric tons) Maximum distance between jaws: 630 mm Compression platen size: 200 x 200 mm Structure and Clamping High-intensity, stable structu...
SPECIFICATION
Test Capacity and Dimensions
-
Maximum load capacity: 1000 kN (1000 metric tons)
-
Maximum distance between jaws: 630 mm
-
Compression platen size: 200 x 200 mm
Structure and Clamping
-
High-intensity, stable structure with 4 columns and 2 screws
-
Oil-hydraulic automatic clamping, computer-controlled
Test Types
-
Supports tension, compression, bending, shearing, and other tests
Computerized Control System
-
Microcomputer control with electro-hydraulic servo system
-
Computer Specs:
-
Windows 11
-
RAM: 16GB
-
ROM: 1TB
-
GTX-1050 graphics card
-
-
Displacement resolution: 0.01 mm
-
Displacement accuracy: ±0.5%
-
Deformation resolution: 0.001 mm
-
Power supply: AC 220V ±10%, 50Hz
Standards Compliance
-
Manufactured as per EN 10002-2, ASTM E4, ISO 7500-1, DIN 51221, and BS1610
Applications
-
Suitable for static and quasi-static tests, including low-frequency fatigue testing on various materials and components
