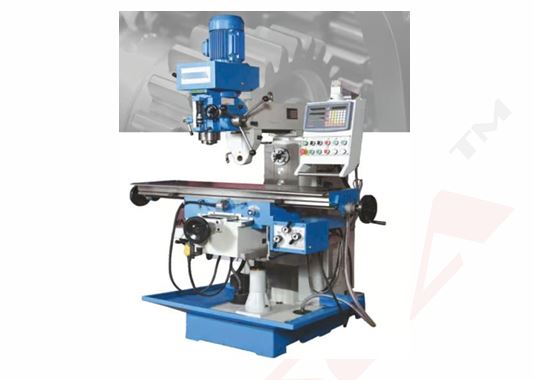

TECHNICAL SPECIFICATIONS:


• Table size  - 1250 X 320mm
• Max. load of Table - 200
• Table Longitudinal travel(manual/auto) - 620
• Table Cross travel (manual/auto)  - 310
• Table Vertical travel(manual/auto) - 430
• Spindle taper - ISO40
• Spindle speed /step -- Vertical - 90-2000/8steps
• Spindle speed /step – Horizontal - 40-1300/12steps
• Max. drilling dia. - 30
• Max. end milling width - 100
• Max. vertical milling Dia. - 25
• Max. tapping dia. - M16
• Quill travel - 120
• Swivel angle of headstock - ±45°
• Vertical spindle axis to column surface  - 200-700
• Vertical spindle nose to table surface - 95-500
• Longitudinal/cross feed (Manual +Auto)  - 22-555/8steps
• Vertical/step (Manual +Auto) - 540mm
• Spindle quill feed  - Manual + Auto
•  Main motors (Vertical + Horizontal Head) - 2.2KW (V Drive) + 2.2 Kw (H Drive)
• (X+Y Axis) is motorized by 1 gear box feed motor  - 0.75 kW
• (Z-Axis) is motorized by 1 gear box feed motor - 0.75 KW
• Coolant motor - 0.04 kW

STANDARD ACCESSORIES:


• One set tools and tools box
• Horizontal milling arbor dia.22
• Drill chuck dia.16
• Spindle arbor iso40/B16
• Wedge shaft
• Draw bar
• Reduction sleeve
• Up/down hand wheel
• Coolant pump with Fittings
• 3 Axis DRO with control panel
• Machine lamp

OPTIONAL ACCESSORIES: (DOESN'T COME WITH THE MACHINE)


•  Micro Boring Head with 3 Tips ISO-40
•  Micro Boring Head with 6 Tips NT-40 (10 micron)
• Micro Boring Head Kit Insert type with 8 Tips NT-40 (5 micron)
• 8” Rotary Table Horizontal & Vertical (With Indexing Device)
• 10” Rotary Table Horizontal & Vertical (With Indexing Device)
• 8” Rotary Table Horizontal with Indexing Device
• 10” Rotary Table Horizontal with Indexing Device
• Horizontal milling arbor dia. 27
• Size 9” x 7” x 6” Cast Iron Slotted Angle Plates Plain
• Size 10” x 8” x 6” Cast Iron Slotted Angle Plates Plain
• Milling Machine Vice 8” (Swivel base)
• 6” Hydraulic Pressure Vice : Rs. 32,500/-
• 6” Hydraulic Pressure Vice (150mm with 300mm Opening)
• Anti-Vibration pad set (4pcs.)
• (12 pcs collet set) (4mm-26mm)
•  BS-1 Semi Universal Dividing Head with 5” Chuck & Spindle Tailstock
• BS-2 Semi Universal Dividing Head with 6” Chuck & Spindle Tailstock
• Clamping kit (58 Pcs.) M12
• Dial Comparator Stands (Square Serrated)
• Magnetic Vee Blocks (Size 65 x 60 x 50 mm)
• Magnetic Vee Blocks (Size 80 x 65 x 60 mm)
