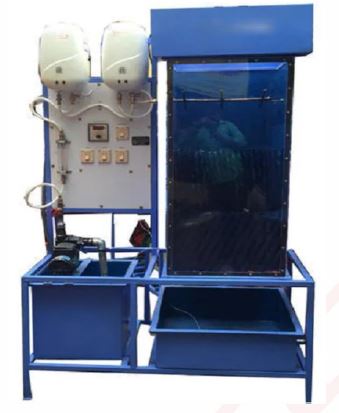

Key Features:

• Designed for simulation and analysis of cooling tower thermal performance
• Suitable for engineering education and industrial R&D applications
• Enables study of heat transfer, humidification, and cooling efficiency
• Compact and robust construction with precise instrumentation

Technical Specifications:

Cooling Tower Section:

• Minimum Size: 150 × 150 × 1000 mm
• Material: Aluminum body with acrylic frame
• Packing: Perforated aluminum corrugated sheets

Air System:

• Blower Capacity: Minimum 1 HP
• Maximum Volume Flow Rate: 13 m³/min
• Air Flow Measurement:
  • Type: Orifice plate with U-tube manometer
  • Manometer Material: Glass
  • Manometric Fluid: Water

Water System:

• Pump:
  • Maximum Head: 70 m
  • Maximum Flow Rate: 100 L/min
• Water Flow Measurement:
  • Type: Rotameter
  • Range: 0–60 cc/sec
• Calibrated Water Tank:
  • Material: Stainless Steel (18 SWG)
  • Size: Minimum 200 × 250 mm

Heating System:

• Heating Element Capacity: Minimum total 3 kW
• Number of Heaters: At least 2

Temperature Measurement:

• Digital Temperature Indicator:
  • Minimum 4-digit display
  • Range: Ambient to 200°C
  • Resolution: 0.1°C
• Thermocouples:
  • Type: K-type
  • Quantity: 6
    • 2 for dry bulb (air inlet & outlet)
    • 2 for wet bulb (air inlet & outlet)
    • 2 for water temperature
  • Wire Length: 1 m
  • Sheathing: Wire mesh

Power Requirement:

• 230 V, 50 Hz, Single Phase

Construction:

• Frame Material: Mild Steel

Instrument Panel:

• Main switch
• Pump switch
• Blower switch
• Digital temperature display

Standard Accessories & Other Requirements:

• User manual
• Air flow control valve
• Water flow control valve
• Minimum 6 spare thermocouples
