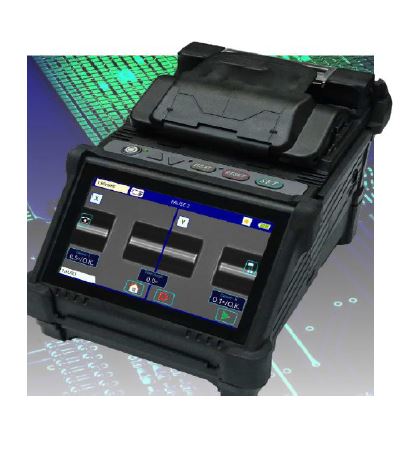

Core Alignment Fusion Splicer

Order Code: 21224887.2

Category: General Lab Equipment III

 Fiber Type: Shall be compatible both Single and Multimode  Fiber alignment method: Active core alignment  Cladding dia: Shall be 80~150µm  Coating dia : Max. 3000 µm  Cl...



SPECIFICATION

  1.  Fiber Type: Shall be compatible both Single and Multimode
  2.  Fiber alignment method: Active core alignment
  3.  Cladding dia: Shall be 80~150µm
  4.  Coating dia : Max. 3000 µm
  5.  Cleave length: Shall be 5~16mm
  6.  Splice time: Shall be 7~9 sec as fast
  7.  Splice loss: To be mentioned as per ITU
  8.  Sleeve type: Shall be heat shrinkable
  9.  Sleeve length: Max. 66mm
  10.  Sleeve dia.: Max. 6mm before shrinking
  11.  Illumination: Shall be LED lamp
  12.  Display: TFT 5? LCD touch screen
  13.  Battery pack: Rechargeable Lithium Ion battery having minimum DC14V / 6000mAh
  14.  Power Supply: 100 to 240V, 50/60Hz
  15.  Interface: USB/Mini DIN/Bluetooth 4.1LE
  16.  Data storage: To be mentioned
  17.  Electrode life: Shall be 5000 splices minimum and replaceable without tool to be confirmed
  18.  Wind protection: Yes
  19.  Cleaver fiber count: Up to 12
  20.  Cleaver cladding diameter: 125 µm
  21.  Cleaver Coating diameter: Shall be 160 to 900μm 2 to 3mm cord and drop cable
  22.  Cleaving angle: Shall be 0.50
  23.  Cleaver blade life: At least 60,000 fibers
  24.  Power unit: Shall be AAA dry battery
  25.  Dimension: To be mentioned
  26.  Weight: To be mentioned
  27.  Manufacturer Authorization: To be provided by the bidder in manufacturer letterhead.
  28.
  29.
  30.
  31.
  32.
  33.
  34.
  35.
  36.
  37.
  38.
  39.
  40.
  41.
  42.
  43.
  44.
  45.
  46.
  47.
  48.
  49.
  50.
  51.
  52.
  53.
  54.  Warranty: Standard one year warranty to be provided
