CORIOLIS MASS FLOW METER

Key features

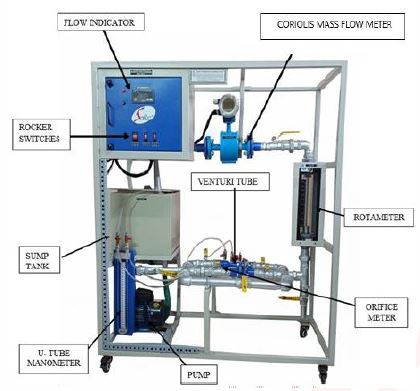

The Setup for Calibration of Flow Sensor gives an idea regarding Flow Sensor & Flow Transmitter Principle. It outlines the procedure for calibration of flow Sensors/Transmitters.

Technical Specifications

• Sump tank - Material: Stainless Steel, 1.5 mm thick/ P.P 5mm thick
• Capacity: 30 liter
• Dimension: 1ft (L)x1ft (W)x1 ft (H)
• Piping - 1” GI, Class B , with 1’’ SS ball valves
• Centrifugal Pump - 1/ ½ H.P, 1φ 230 V AC supply
• Rotameter - Range: 0-2000/2500 LPH, Glass tube type/acrylic body, Bob Material: SS304
• Connection: 1”, Mounting: Inlet Bottom Outlet Top
• Orifice - 1” Line size, concentric type, MOC: Polypropylene (pp)
• Venturi - 1” Line size, MOC: MS/CRC
• Manometer- U-Tube manometer, H: 400 mm, Panel mounting type.
• Flow Transmitter - Type: Digital Turbine (Wheel Flow Meter) Range: 0-2000 LPH, Output: 4 – 20mA
• Flow Indicator - 3 ½ digit display, 230 V AC operated, Cut out: 92 mm× 46 mm
• Range: 0-2000 LPH, Input: 4-20 mA
• Electrical Control Panel - MS Powder coated panel with switches, indicator, Test, Points, controller on front facia, Use of 0.5 sq. mm multistrand wire with Proper insulated Lugs, Ferruling & neat wire Dressing & clamping Wires & power cables are Seated through 1’’×1’’ PVC cable tray.
• Dimension: 1ft (L) ×1ft (W) ×1ft (H).

Features

• User Friendly, Self-Explanatory Systems.
• Robust Construction.
• Enhanced Electrical Safety Considerations.
• Training Manuals mimic Charts for Operation Ease.
• Inbuilt Safety Measures to avoid improper usage.
• Flow meter with pulse output & flow indication on LED display.
• Manometer for DP Measurement across Orifice Plate, Venturi meter.
• Caster wheel mounted movable frame

Range of Experiments

• Study of CORIOLIS MASS FLOW METER, Flow Sensors such as Orifice, Venturi, Rotameter, with the help of Manometer
• Calibration of Flow Sensors/Transmitters

System Dimension - 43”. (L) X 21”. (W) X 57”. (H)
Weight: Approx. 81kg.
