Key Features:

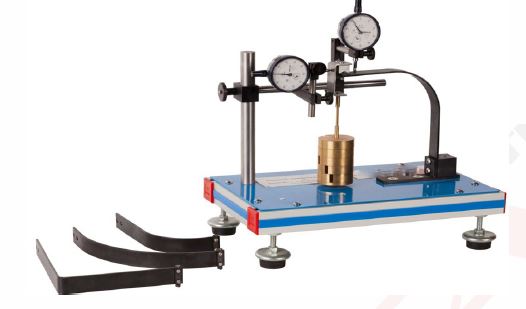

• Designed for investigation of deflection in curved and davit structures
• Demonstrates behavior of:
  • Quarter circle
  • Semicircle
  • Curved davit
  • Angled davit
• Measures both vertical and horizontal deflection
• Enables study of elastic bending and comparison of elastic behavior
• High-precision measurement using digital deflection indicators

Experiments & Topics Covered:

• Effect of loads on vertical and horizontal deflection of:
  • Quarter Circle
  • Semicircle
  • Curved Davit
  • Angled Davit
• Elastic bending analysis
• Comparison of elastic deformation in different structures

Standard Features:

• Supplied with comprehensive User Guide (theory, experiments, and sample results)
• Back plate with dual deflection indicators mounted at 90°
• Magnetic base indicators for flexible positioning
• Complete setup with all required accessories

Technical Specifications:

Test Structures:

• Quarter Circle:
  • Material: Aluminium (Grade HE30)
  • Size: 3/4” × 1/8”
  • Radius: 148.5 mm
• Semicircle:
  • Material: Aluminium (Grade HE30)
  • Size: 3/4” × 1/8”
  • Radius: 148.5 mm
• Curved Davit:
  • Material: Aluminium (Grade HE30)
  • Size: 3/4” × 1/8”
  • Radius: 73.5 mm
• Angled Davit:
  • Material: Aluminium (Grade HE30)
  • Size: 3/4” × 1/8”
  • Angle: 135°

Base & Mounting:

• Back Plate: 3 mm Mild Steel
• Fixing Block and Clamp Plate included

Deflection Measurement System:

• Two industrial digital deflection indicators mounted at 90°
• Resolution: 0.01 mm
• Measuring Range: 12.7 mm
• Accuracy: ±0.02 mm
• Data Output: Yes
• Magnetic base for adjustable positioning

Accessories Included:

• Two mass hangers
• Set of 25 × 20 g weights
• Hexagon tool
• Vernier caliper
• Storage tray

Compatibility:

• Fits to Structures Test Frame and HUB

Dimensions & Weight:

• Assembled Size: approx. 280 mm (L) × 125 mm (W) × 480 mm (H)
• Weight: approx. 6 kg

Packaging Details:

• Packed Volume: approx. 0.04 m³
• Packed Weight: approx. 7 kg

Environmental Conditions:

• Storage Temperature: –25°C to +55°C
• Operating Temperature: +5°C to +40°C
• Operating Relative Humidity:
  • 80% at temperatures ≤31°C
  • Decreasing linearly to 50% at 40°C
