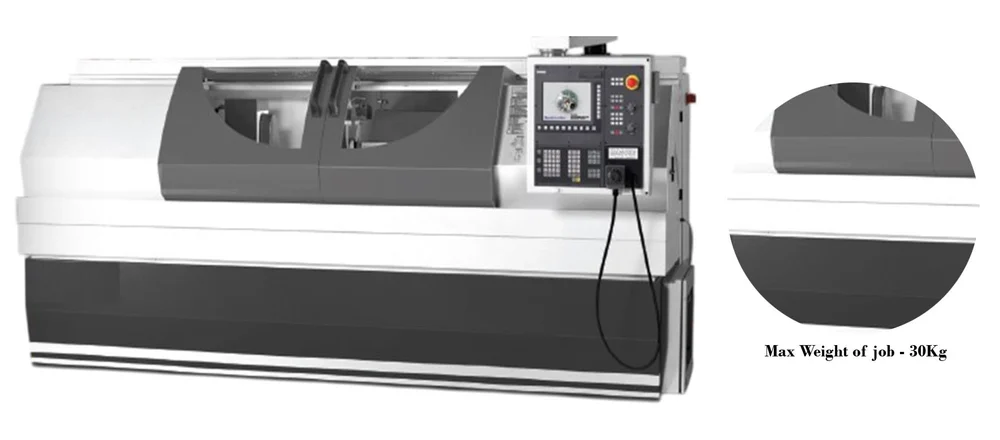

Cylindrical Grinding Machine
SPECIFICATION
Type
- Universal cylindrical grinding machine for precision external (0D) grinding of cylindrical, tapered, and stepped components between centres or In a chuck.
- External Grinding Diameter Range
- Ø 8 mm - Ø 200 mm
- Centre Height: Minimum 135 mm
- Max Table Travel: Minimum 600 mm
- Max Grinding Length (between centres)
- Minimum 500 mm
- Max Workpiece Weight: Minimum 5 0 kg between centers.
- Table Swivel Range: -5? to+ 7? (or equivalent for taper grinding)
- Hydraulic Table Traverse Speed: 0.1 - 4 m/min, stepless variable
- Grinding Wheel Size: Max. Ø400 x 50 mm x Ø 203 mm bore
- Work head & Tailstock Taper: MT No. 4 (ISO 296)
- Total Machine Power: Minimum 5.5kW (combined motors)
- OD Roundness (between Centres): Maximum ≤ 1.5 μm
- Diameter Uniformity (Longitudinal): Maximum s ≤ 5 μm.
- Achievable Surface Finish
- Ra ≤0.4 μm in finishing mode (ISO 4287)
- Electrical Components
- Switchgear, contactors, and controls from a reputable manufacturer
- (Siemens, ABB, Schneider, or equivalent). Brand to be declared by bidder.
- Machine Weight :Minimum 2,500 kg
- Wheel Dresser :Diamond wheel dresser/truing device supplied as standard
- Steady Rests: Minimum 1 x fixed steady rest for long workpiece support
- Coolant System: Re circulating coolant with nozzle and flow control.
