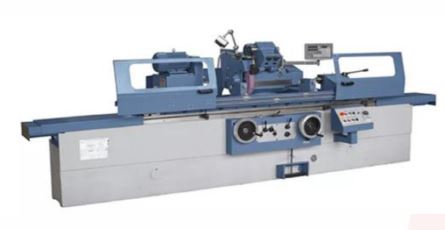

The cylindrical grinding machine shall exhibit the following technical features:
Description

1. Grinding diameters with steady-rest(O.D.)-8–60 mm
2. Grinding diameters without steadyrest(O.D.)-8–200 mm
3. Grinding diameters with steady-rest(I.D.)-35–100 mm
4. Grinding diameters without steadyrest(I.D.)-25–100 mm
5. Max. workpiece weight 150 kg
6. Grinding length (O.D./I.D.) 800 / 125 mm
7. Center height 135-180 mm
8. Distance between centers 1000 mm
9. External wheel size Max. Φ400×50×Φ203mm
10. Min. Φ280×50×Φ203 mm
11. Max. peripheral speed of grinding wheel-38 m/s
12. Internal grinding wheel size-
13. Max. Φ50×40×Φ16 mm
14. Min . Φ45×35×Φ10 mm
15. Internal wheel spindle speed 1670 r/min
16. Wheelhead rapid travel 25 mm
17. Headstock & tailstock center MT4
18. Swivel range of worktable –3° ~ +6°
19. Worktable speed 0.1–4 m/min
20. Max. table travel 950 mm
21. Spindle speed of headstock 50Hz: 25–380 stepless r/min
22. 60Hz: 30–456 stepless r/min
23. Machine motor power 5.625 kW
24. Overall dimensions (L × W × H) 3000×1600×1000 mm
25. Machine weight 3000 kg

Main Features

1. High cutting precision, strong rigidity, and high grinding efficiency. Ideal for cylindrical and conical workpieces.
2. All moving components (workpiece, outer and inner grinding wheels, oil and cooling pumps) are driven by independent motors.
3. Table longitudinal movement supports hydraulic stepless speed adjustment and manual control. Lubrication is performed via throttling discharge.
4. All motion sections are interlocked via electrical, hydraulic,and mechanical safety mechanisms.
