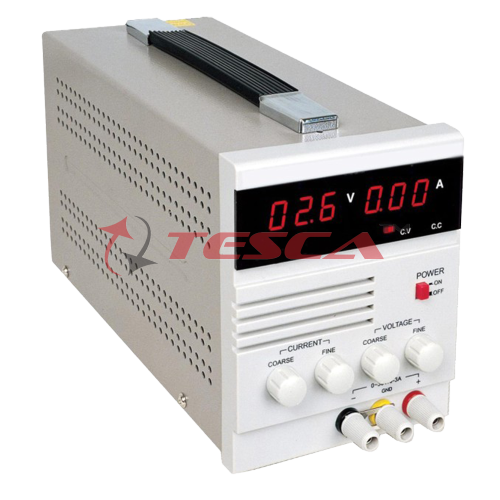

DC Power Supply
Order Code: 22235688.13
Category: General Lab Equipment I
Output voltage : 0~30V Output current : 0~5A Source regulation : 1×10-4 +3mV Load regulation : 1×10-4 +3mV Ripple& noise : ≤1mV Display error : ≤0.5%+1 digit Voltage: 0 to Nominal Value Continuously Vari...
SPECIFICATION
- Output voltage : 0~30V
- Output current : 0~5A
- Source regulation : 1×10-4 +3mV
- Load regulation : 1×10-4 +3mV
- Ripple& noise : ≤1mV
- Display error : ≤0.5%+1 digit
Voltage:
- 0 to Nominal Value Continuously Variable
- Stability : Voltage: ≤0.01%+2mV
- Load: ≤0.0%+2mV
- Recover Time : ≤100mS
- Ripple & Noise : ≤1MVRMSefficent
- Temperature Factor : ≤300PPM/oC
Current:
- 0 to Nominal Value Continuously Variable
- Current, Load Stability : ≤0.2%+3mA
- Ripple & Noise : ≤3mArms
Working Condition:
- Line Power Supply : 220V±10% 50/60Hz (Alterable if needed :110±10%50/60Hz)
- Operating : Temperature:-10oC~40oC Moisture £90%
- Storage : Temperature:-20oC~80oC Moisture £80%
