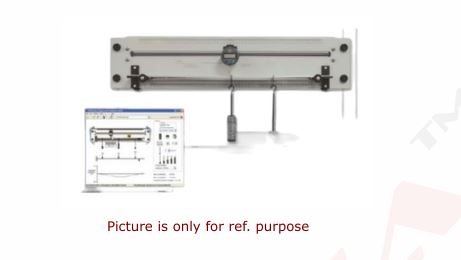

Deflection of beams cantilevers essential ancillary: structures platform apparatus
Order Code: 24258458.7
Category: General Lab Equipment V
Features: Part of a range of experiment modules for teaching structural principles Fits to the Structures platform for ergonomic use and space-saving storage Selectable beam fixing conditions w...
SPECIFICATION
Features:
- Part of a range of experiment modules for teaching structural principles
- Fits to the Structures platform for ergonomic use and space-saving storage
- Selectable beam fixing conditions with fully adjustable load and deflection measurement positions
- Includes beams of various materials and cross-sections for comparing Young’s modulus and Second Moment of Area (‘I’ value)
- High-resolution digital deflection indicator for accurate measurements
- Includes Vernier caliper for cross-section measurements
- Supplied with a storage tray to keep smaller items safe
- Compatible with user-friendly VDAS® software
Learning Outcomes:
- Application of the beam bending formula and understanding structural stiffness
- Deflection due to point loads and uniformly distributed loads (UDLs)
- Influence of beam fixings on deflection:
- Simply supported beams
- Fixed or ‘encastre’ beams
- Cantilever beams
- Propped cantilevers
- Shape of a deflected beam
- Influence of beam length, material, and cross-section on deflection
- Elastic (Young’s) modulus comparison
- Second Moment of Area (‘I’ value) analysis
- Pure bending in a beam
