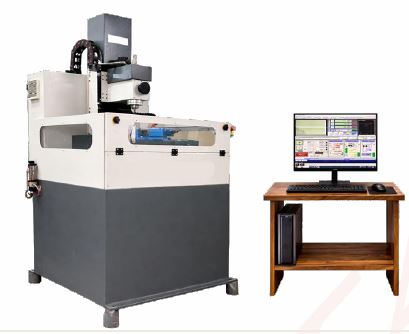

DESKTOP MILLING MACHINE
SPECIFICATION
DESKTOP MILLING MACHINE
1. X,Y&Z Operation strokes:203.2(X)x152.4(Y)x60.5(Z)
2. Workpiece table size:232.2(X)x156.6(Y)mm
3. Distance from collet tip to table:Max 130.75mm(5.15in)
4. Loadable workpiece weight: 2kg(4.4lb)
5. X-,Y- &Z-Axis Drive System: stepping motor
6. Operating speed:6-1800mm/min 0.24-70.87inch/min
7. Software Resolution: 0.01mm/step (RML1),0.001mm/step(NC code) 0.000039 inches/step (RML-1)
8. Mechanical Resolution:0.000998594mm/step
9. Spindle motor: DC motor Type 380
10. Spindle rotation speed: Adjustable 3000-7000rpm
11. Cutting tool chuck: collet mathod
12. Interface: USB
13. Control command sets: RML-1,NC code
14. Power requirements:Machine: DC24V, 2.5A,Dedicated AC adapter: AC 100-240 V ±10%, 50/60 Hz
15. Power Consumption: Approx. 50 W
16. Operating Noise: During operation: 65 dB (A) or less (when not cutting), During standby: 45 dB (A) or less
17. Included Items: USB cable, AC adapter, Power cable, cutting tool, Collet, Set screw, Spanners (7,10mm), Hexagonal wrench (size 2,3 mm), Positioning pins, Double-sided tape, Start-up page guidance card
