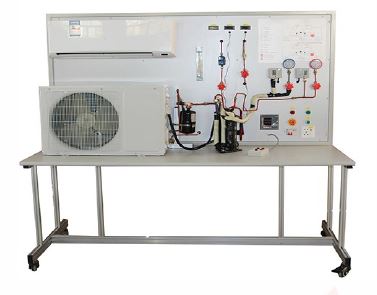

Didactic training bench for the study of a split air conditioning system

Order Code: 25269574.2

Category: General Lab Equipment V

Didactic training bench for the study of a split air conditioning system



SPECIFICATION

Educational Objectives
The training bench enables learners to achieve the following educational outcomes:

  • Study and design of a split air conditioning system
  • Understanding the working of the compressor
  • Study of the condenser and its heat rejection process
  • Operation and function of the thermostatic expansion valve
  • Study of the evaporator and its cooling effect
  • Understanding the thermodynamic cycle in the refrigeration cycle
  • Learning different system connections used in air conditioning systems
  • Studying the operation of a refrigeration system / heat pump
  • Learning the correct method for charging and discharging refrigerant in the system
  •  Performing refrigerant leak detection in the air conditioning system
